Easy Installation -5°C Outlet Low Temperature Skid-Mounted Water Cooled Screw Chiller

Easy Installation -5°C Low Temperature Skid-Mounted Water Cooled Screw Chiller

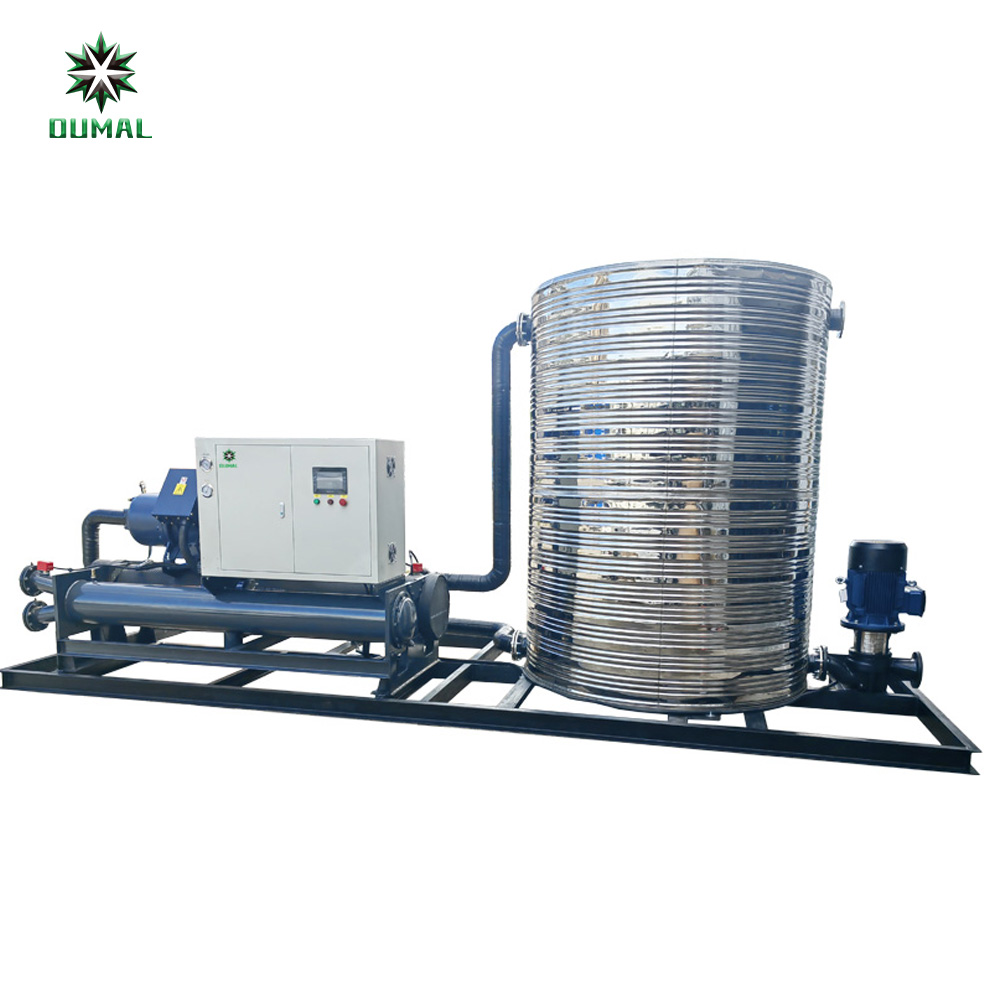

As is well known, water-cooled screw chillers are highly efficient water cooling units; however, their installation is relatively complex, requiring the setup of a cooling tower, water tank, and water pumps. This skid-mounted screw chiller unit is specifically designed to resolve these installation challenges for our clients. We integrate the chiller unit, water tank, and water pumps onto a single base directly at our factory, thereby eliminating your on-site installation difficulties and significantly reducing both installation time and costs.Furthermore, this chiller has a small footprint.

What is a Skid-Mounted Water Cooled Screw Chiller ?

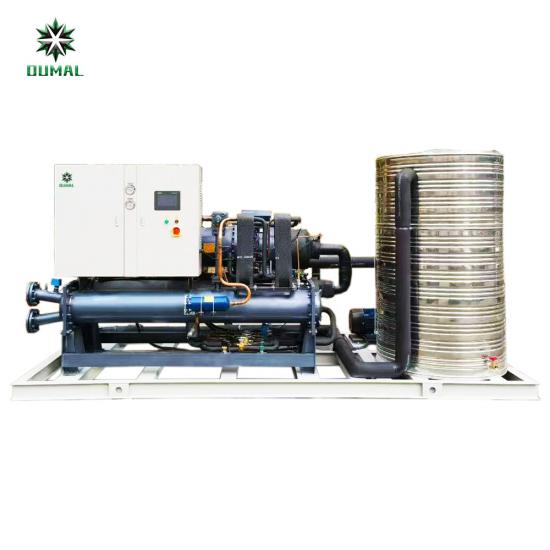

A skid-mounted water cooled screw chiller is a pre-assembled, compact, and portable cooling system where all components—water cooled screw chiller, pumps, tanks, and controls—are mounted on a single steel frame or base (skid). It acts as a "plug-and-play" unit, allowing for rapid installation, easy transport, and reduced on-site construction in industrial applications.

Features and Advantages of Skid-Mounted Water-Cooled Screw Chillers
All-in-One / Simple Installation / Time-Saving / Labor-Saving: Modular "Plug-and-Play" Design—Fully assembled and tested prior to leaving the factory, effectively reducing on-site installation time and labor costs while minimizing disruption to on-site operations.
Compact and Portable: Engineered specifically for efficient operation within confined spaces, facilitating easy handling and transfer between different job sites.
Highly Customizable: Can be tailored to meet the specific requirements of specialized industries such as petrochemicals, food processing, and pharmaceuticals. Customization options regarding dimensions, materials, and other specifications are also available.
Reliable: Eliminates Piping Errors and Wiring Errors
Manufactured within a controlled factory environment to ensure high product quality and significantly reduce potential issues during the on-site commissioning and startup phases.

The main components of a skid-mounted screw chiller unit include the compressor, condenser, evaporator, expansion valve, oil separator, electrical control system, and auxiliary components. These units integrate core components onto a portable steel base (skid-mounted platform), facilitating easy transportation and rapid installation; they are widely utilized in industrial refrigeration and central air conditioning systems.

Compressor: Serving as the "heart" of the unit, it employs a screw-type design (either single-screw or twin-screw) to compress the refrigerant through rotor rotation, thereby providing the motive power for the refrigeration cycle. Primary compressor brands include Hanbell, Bitzer, and Refcomp.
Condenser: This component cools and liquefies the high-temperature, high-pressure refrigerant gas. Water-cooled models require an accompanying cooling tower, while air-cooled models rely on fans to dissipate heat. Water-cooled screw chillers typically utilize shell-and-tube condensers.
Evaporator: Here, the low-temperature, low-pressure liquid refrigerant absorbs heat and evaporates, thereby cooling the external chilled water to achieve the desired refrigeration effect. We utilize dry-type shell-and-tube evaporators; materials can be customized to suit specific operating conditions.
Expansion Valve:This device performs throttling and pressure reduction functions, controlling the flow rate of refrigerant entering the evaporator. Common types include thermal expansion valves and electronic expansion valves. OUMALCHILLER employs high-quality expansion valves from Danfoss or Emerson.
Electrical Control System: Comprising a PLC controller, touch screen interface, sensors, and other components, this system enables automated operation, remote monitoring, and comprehensive safety protection. We utilize Siemens PLCs as our standard configuration, with other brands available as optional alternatives.
Auxiliary Components: These include filter dryers, economizers, sight glasses, solenoid valves, water pumps, insulated piping, and various other valves, all of which serve to enhance the system's overall efficiency and reliability.

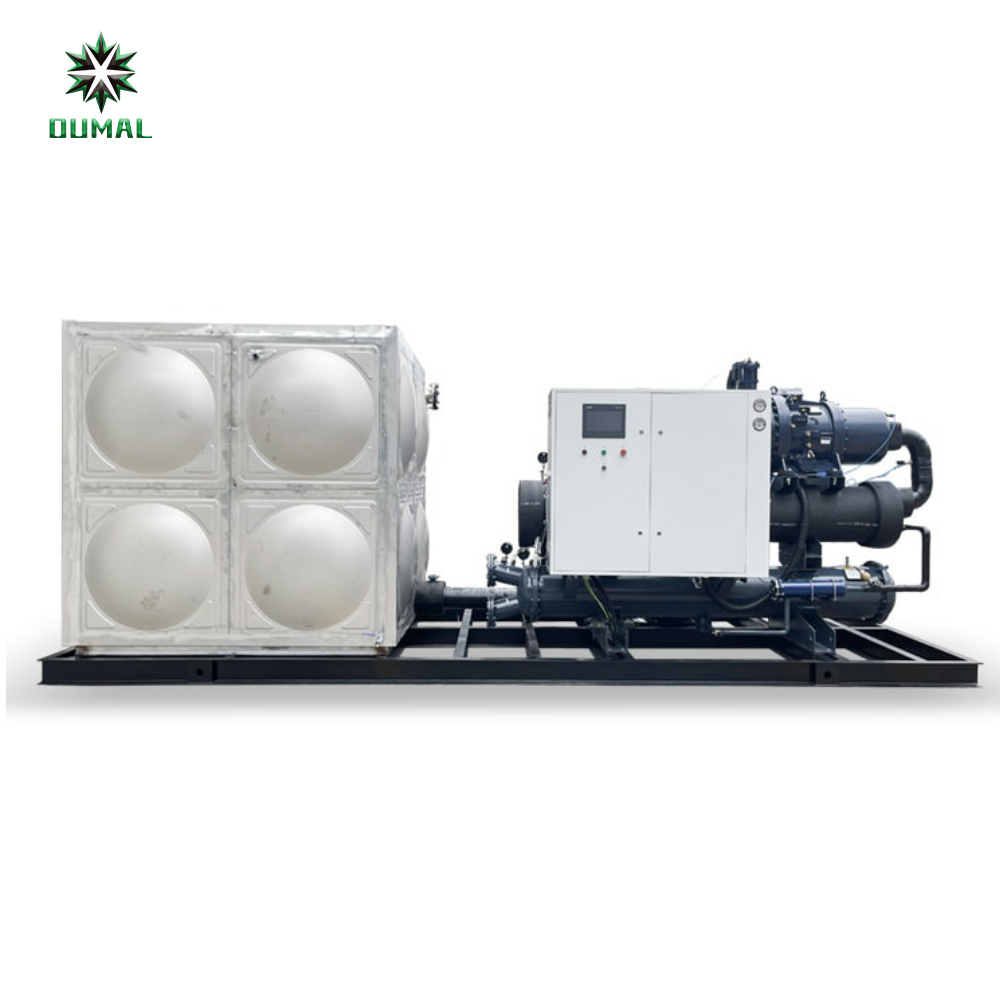

Buffer Water Tank: Features a double-layer insulated stainless steel tank. Both cylindrical and rectangular tank configurations are available, with customizable capacities; special materials can also be specified for custom orders.
Water Pumps: Includes the chilled water pump; a backup pump can be added if required. The pump head (pressure/lift) required to circulate water from the tank to the user's facility can be customized according to specific project needs.

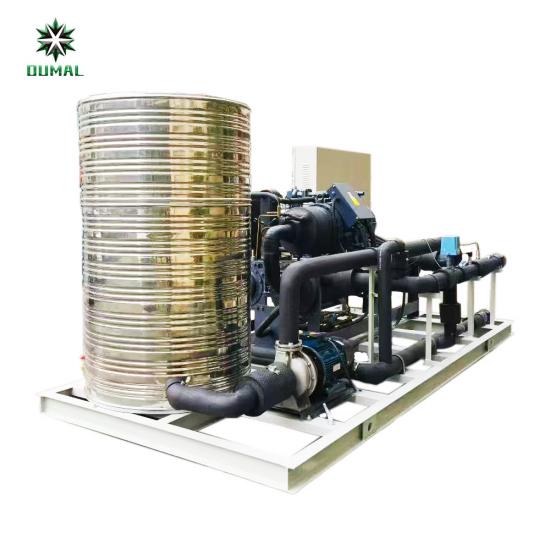

More Skid-Mounted Water cooled screw chiller Product display

Compressor features:

•New screw type compressor with 20%-30% higher in efficiency.

•Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.

•High efficiency, low noise and vibration, easy to install.

•Environmental protection refrigerant R134a, R407c available.

Control operation system:

•SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.

•Extended industrial interface, convenient for being computer monitor via network.

Completely safety protection function:

•Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.

The primary applications of skid-mounted screw chiller units include industrial process cooling, central air conditioning systems, cooling for new energy production, and data center temperature control. Due to their high level of integration and ease of installation, these units are widely utilized in scenarios requiring the rapid deployment of refrigeration systems.

Industrial Process Cooling: In sectors such as chemicals, plastics, and pharmaceuticals, these units are used to cool equipment—including high-exothermic reactors, injection molding machines, and die-casting molds—thereby ensuring production continuity and product stability.
Central Air Conditioning Systems: Suitable for large commercial buildings such as hotels, hospitals, and shopping malls, these units supply chilled water ranging from 7°C to 25°C, enabling efficient and energy-saving environmental temperature control.
New Energy Manufacturing: In the production of power batteries, these units provide precise temperature control for critical stages—such as cell drying and module electrolyte injection—to ensure process safety and battery performance.
Data Center Cooling: These units supply stable, low-temperature chilled water to server clusters, preventing equipment overheating and ensuring the long-term, reliable operation of data systems.
Temporary or Mobile Cooling Requirements: Thanks to their skid-mounted design, these units can be rapidly installed and deployed in field operations or emergency projects, adapting effectively to complex site conditions.

75HP Low Temperature Water Cooled Screw chiller Product Specification (-5℃ outlet water temperature)

Packing & Shipping

FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?

Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as Copeland, Danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users

Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.

Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.

Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.

Q6: How can i Place an order

A6: Click Below to fill the table or Call 0086 15112554736
