180 Ton double compressors water cooled screw chiller

180 Ton double compressors water cooled screw chiller OMC-180WDH. Build in 2 semi-hermetic screw compressors, Hanbell or Bitzer Brand optional. Cooling water temperature 5ºC-35ºC. Lower temperature can be customized.
  • Item NO.:

    OMC-170WDH
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    20-30 Working days
  • Order(MOQ):

    1
  • Product Detail

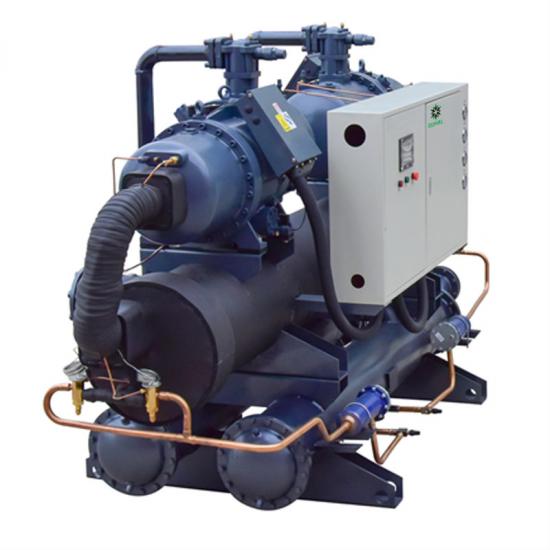

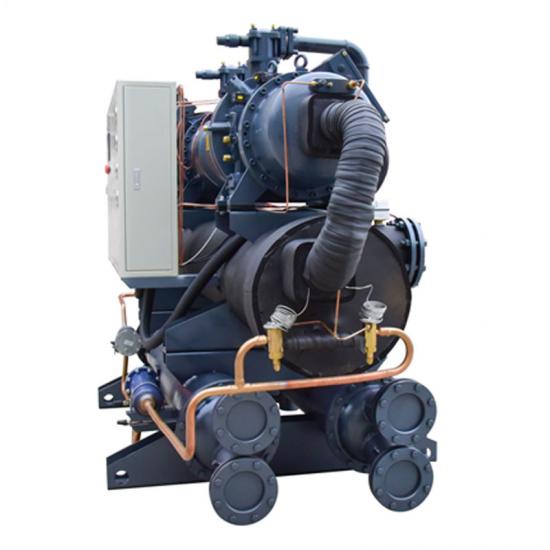

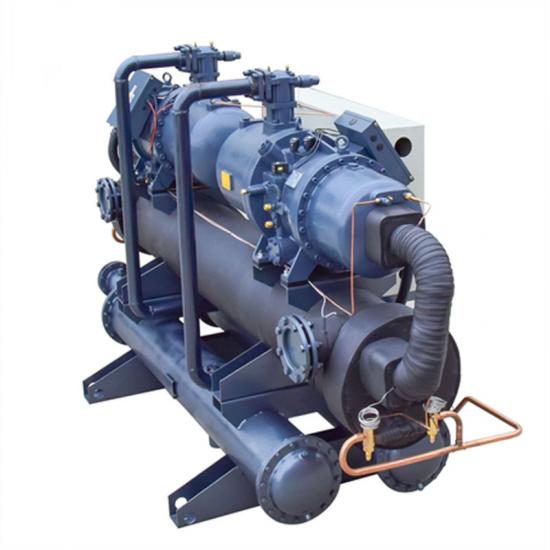

180 Ton double compressors water cooled screw chiller


180 Ton water cooled screw chiller double compressors cooling systems use Famous brand semi-hermetic screw compressor Hanbell from Taiwan or Bitzer from Germany. water cooled screw chillers are effective cooling solutions for industrial processes as well as making for efficient air conditioning systems for large facilities like office buildings, schools, theaters, factories, warehouses, shopping malls, libraries, etc. In these applications chillers use less power than traditional air conditioning methods.


Oumal Refrigeration is a leading water cooled screw chiller supplier in china. Using famous brand Semi-hermetic Screw Compressor- Bitzer from Germany and Handbell from Taiwan.

Each screw compressor comes with 4 steps of energy control 0-25%-50%-75%-100% to make sure the whole screw chiller operates when stable with high refrigeration performance.

Each water-cooled screw chiller with high-efficiency shell and tube type heat exchanger and shell and tube condenser.

Integrated PLC control system with human-computer interface and big LED touch screen panel for easy operation.

Other refrigeration parts are world famous refrigeration spare parts like Danfoss or Emerson thermal expansion valve, Alco dryer filter, Schneider contactor, and overload relay will make sure the whole screw chiller works under normal condition.

Compared with air cooled screw chiller, water cooled screw chiller should run together with external cooling tower and water pump. This is the biggest difference between air cooled screw chiller and water cooled screw chiller.

Besides the standard water-cooled screw chiller control temperature from 7ºC to 30ºC, OUMAL chiller also has a water-cooled glycol screw chiller control temperature below zero from 0ºC to -40ºC for some special industrial applications.As a professional water cooled screw chiller manufacturer, OUMAL Chiller has exported many water cooled screw chillers to the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Dubai, Spain, Italy, etc.


Water-Cooled Screw Chiller Product Information


Temperature control 5ºC to 35ºC
Shell and tube evaporator and condenser
Bizer or Hanbell semi-hermetic screw compressor
Optional refrigerant R134a,R407c and R404a, R22.
Safety protection devices of whole screw chiller
All models and cooling capacity availableTemperature control 5℃ to 35℃


Water-cooled screw chiller advantage


Well Known Brand Compressor

  • Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.
  • Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running. Compressor start-up in stages, minimize the impact to electricity. Steady and safe running with low vibration.
  • Most advanced patented highest precision manufacturing process.
  • Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

Microprogramming Control System

  • LCD touch screen interface. Industrial Siemens PLC centralized control combined with compressor capacity control system, precisely monitor.
  • Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
  • Optional operation language, menu leading, unit running state easy to adjust.

A variety of refrigerants and power source are available

  • Standard design charged R22 CFC Free R407C, R410A, R404A, R134A for option.
  • 380V-415V/50Hz 3pH for standard design. 380V~415V, 50HZ/60HZ, different design on customers' request.

Easy installation, quality is assured

  • Compact structure, less space demand and light in weight, easy for transport and installation.
  • Completely wired, inspected and tested pre-delivery, saving installation time and cost.

If you are looking for good quality water cooled screw chiller supplier? Please contact us to get an instant price.

double compressors chiller


Water cooled screw chiller Application


Oumal series water cooled screw chiller is mainly applied in Plastic & Rubber industry, medium and large scale industrial cooling. It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in central air conditioning system, cold room, thermostatic chamber, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.

180 Ton water cooled screw products Specification


  Item                        Model

OMC-170WDH

Cooling Capacity

kcal/h

546616

KW

635.6

Ton

180.7

Btu/h

2169283

Input Power

KW

63.7 x 2

Max.running Current

A

332

Power supply


3PH-380V/415V 50HZ(220V/440V  60HZ))

Refrigerant

Type


R22/R407C

Charge quantity

kg

119

Control Mode


Expansion Valve

Compressor

Type


Semi-Hermetic Screw

Power

KW

63.7 x 2

Start-up Mode


Y-△

Capacity Control

0-25-50-75-100(0-33-66-100)

Evaporator

Type


Shell and Tube

Chilled water flow

m3/h

109.3

Pipe Diameter

lnch

5"

Condenser

Type


Shell and Tube

Cooling water flow

m3/h

131.2

Pipe Diameter

lnch

4"x 2

Dimension

Length

mm

3460

Width

mm

1350

Height

mm

1760

Net Weight

kg

2950

Running Weight

kg

3210

Safety Protection: Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow switch


FAQ


Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: What's your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order?

A6: Click Below to fill the table or Call 0086 15112554736.
