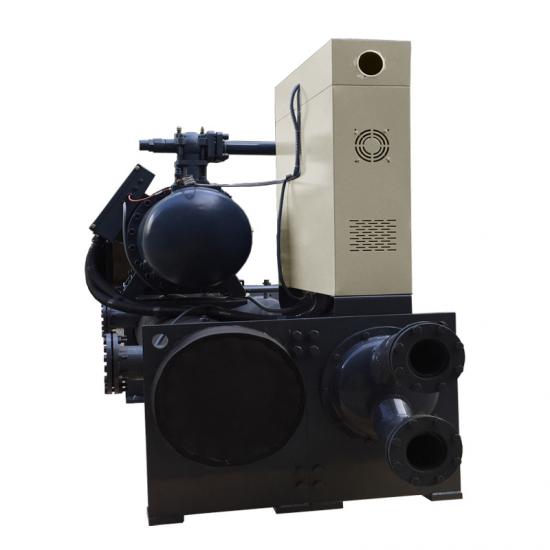

50 Ton Water Cooled Screw Chiller

Water Cooled Screw Chiller 50Ton Cooling Capacity OMC-60WSH, Single Hand or Double Hands optional. Use High efficient Semi-Hermetic Screw Compressor Hanell Brand (From Taiwan) or Bitzer Brand (From Germany). Chilled Water Temperature Range 5℃-35℃.

  • Item NO.:

    OMC-60WSH
  • Payment:

    T/T, L/C,West Union
  • Product Origin:

    China
  • Color:

    Customize
  • Shipping Port:

    Shekou or Yantian Port
  • Lead Time:

    15-30 working days
  • Order(MOQ):

    1 set
  • Product Detail

50 Ton Water Cooled Screw Chiller


The water cooled screw chiller system assures the stable chilled water supply. The water chilling system functions well in industrial applications such as the cooling of production process lines in manufacturing plants, as well as in air conditioning. OUMAL   water cooled screw chiller systems comes with Eco-friendly R- 407c refrigerant able to delivery excellent performance at high ambient temperature condition.


OUMAL water cooled screw chiller adopts branded screw type compressor with low noise & vibration, which provides superior performance while lowering energy consumption and dramatically reducing noise levels. High efficient copper condenser and shell and tube evaporator for heat exchange. Also famous control components ensure stability, durability and reliability. In a word, OUMAL water cooled screw chiller unit features  high cooling capacity from 30Ton to 600Ton , but these water screw chillers comes with compact size, easy operation and maintenance.


Screw chiller systems by water cooled with various cooling capacity are available in many models. Just see following specifications for the water screw chiller systems, or just contact us with your cooling requirements and our engineer will diagnose and select suitable models as per your needs.


Water-Cooled Screw Chiller Product Information


●:Temperature control 5℃ to 35℃

●:Shell and tube evaporator and condenser

●:Bizer or Hanbell semi-hermetic screw compressor

●:Optional refrigerant R134a,R407c and R404a

●:Schneider Electrical Components

●:PLC/ Touch Screen Control Panel

●:No water tank, connect an external water tank

●:Need to connect a cooling tower

●:Safety protection devices of whole screw chiller

●:All models and cooling capacity available

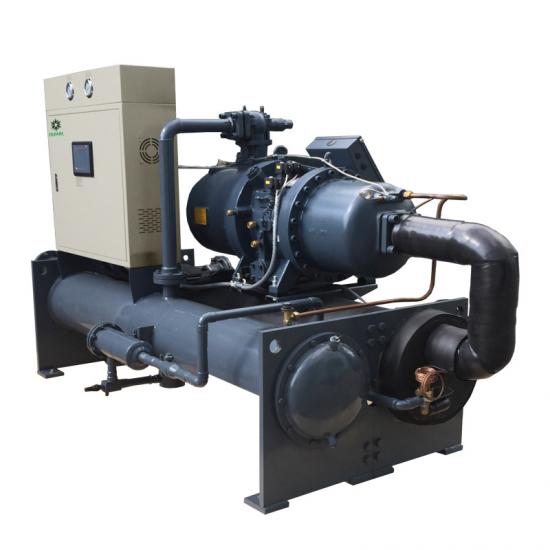

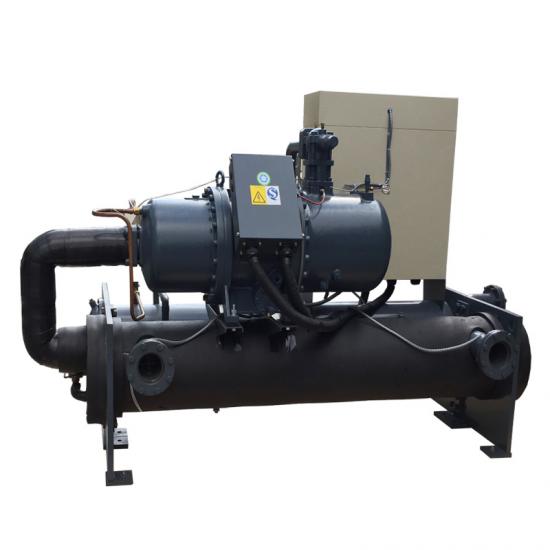

Water cooled screw chiller Product display


Compressor features:

•New screw type compressor with 20%-30% higher in efficiency.

•Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.

•High efficiency, low noise and vibration, easy to install.

•Environmental protection refrigerant R134a, R407c available.


Control operation system:

•SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.

•Extended industrial interface, convenient for being computer monitor via network.


Completely safety protection function:

•Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.

Screw Chiller for Industry


50 Ton Water Cooled Screw Chiller Application

The main application industries of chillers: plastic industry (including injection molding, blister, extrusion, blowing, etc.), electroplating industry (electrophoresis, anodizing), electronics industry (for example: PCB drilling machine, exposure machine, wave soldering, reflow soldering, etc.) Temperature control), laser machine temperature control, chemical industry (mainly reactor temperature control), laboratories, food industry, dyeing industry, hotel refrigeration, central air-conditioning.

Screw Chiller Application


50 Ton Screw chiller Product Specification


Item Model

OMC-60WSH

Cooling Capacity

   kcal/h

173376

KW

201.6

Ton

57.3

Btu/h

688055

Input Power

KW

42.3

Max.running Current

A

112

Power supply


3PH-380V/415V 50HZ(220V/440V  60HZ))

Refrigerant

Type


R22

Charge quantity

kg

42

Control Mode


Expansion Valve

Compressor

Type


Semi-Hermetic Screw

Power

KW

42.3

Start-up Mode


Y-△

Capacity Control

0-25-50-75-100 (0-33-66-100)

Evaporator

Type


Shell and Tube

Chilled water flow

m3/h

34.7

Pipe Diameter

lnch

3"

Condenser

Type


Shell and Tube

Cooling water flow

m3/h

42.0

Pipe Diameter

lnch

3"

Dimension

Length

mm

2450

Width

mm

985

Height

mm

1600

Net Weight

kg

1120

Running Weight

kg

1270

Safety Protection:Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow switch


Packing & Shipping


plastic process cooling system


FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order

A6: Click Below to fill the table or Call 0086 15112554736
