70TR Water Cooled Screw Chiller 250kw with Siemens PLC Controller

70TR Water Cooled Screw Chiller 250kw with Siemens PLC Controller

Oumal Chiller specializes in industrial chiller machines, offering a wide range of water-cooled screw chillers, and provides complimentary model selection services to precisely match your specific requirements. This 70TR water cooled screw chiller cooling capacity about 250kw. The chiller Equiped with Siemens PLC Controller, RS485 Port remote control optional. High quality shell and tube condenser and evaporator, adopt High-Efficiency Internally Threaded Copper Tube with Excellent heat exchange efficiency.

Main Feature of the 250kw water cooled screw chiller.

Compressor: As the core component of the chiller, the compressor utilizes a high-quality, semi-hermetic screw compressor from a renowned brand—either Hanbell or Bitzer. Featuring a highly efficient 5:6 screw rotor design, it offers 20–30% greater energy efficiency compared to standard compressors, ensuring reliable operation and ease of maintenance. Its specialized structural design and spatial layout—combined with the Swedish SRM "i" profile screw geometry, a high-efficiency 5+7 tooth ratio, and high-quality wear-resistant bearing assemblies—guarantee high-performance operation and an extended service life.

Shell and Tube Condenser: Utilizes high-efficiency heat exchange copper tubes housed within a seamless carbon steel shell. Features high heat exchange efficiency and an anti-freezing design; customization using specialized materials is available upon request.

Shell and Tube Evaporator: Utilizes high-efficiency heat exchange copper tubes housed within a seamless carbon steel shell. Features high heat exchange efficiency and an anti-freezing design; customization using specialized materials is available upon request.

Controller System:  As the "brain" of the chiller, the control system is critical; we utilize a programmable Siemens PLC + LCD Touch Screen. Multiple specifications available; optional RS485 remote control. There are also other control system brands available with lower cost.

Electricity Box: Using famous Brand Contactors, such as Schneider, ABB, LS,CHNT......

Refrigeration Parts: Famous Brand such as: Emerson, Danfoss......

Water-Cooled Design: The chiller uses water as the cooling medium, which is circulated through the system to remove heat from the industrial processes. It requires a water source and a cooling tower or an external water-cooling system.

Control System: The chiller is equipped with an advanced control system that allows for precise temperature control and operational settings. It may include features such as programmable logic controllers (PLCs), touch-screen displays, and remote control capabilities.

Safety Features: The chiller may come with various safety features, such as high/low-pressure protection, motor overload protection, anti-freezing protection, and phase sequence protection, ensuring safe and reliable operation.

Energy Efficiency: The chiller is designed to be energy-efficient, with features like variable frequency drives (VFD) and intelligent control algorithms that optimize the chiller's energy consumption and reduce operational costs.

Robust Construction: The chiller is built with durable materials and a robust construction to withstand the demands of industrial environments. It is designed for continuous operation and requires minimal maintenance.The 70 ton water cooled chiller use high quality semi-hermetic screw compressor Bitzer or Hanbell. Single and double compressors system optional.

Advantages of the Dry evaporator water cooled screw chiller

Water cooled screw chillers offer several advantages in industrial cooling applications:

Cooling Efficiency: Water cooled chillers are known for their cooling efficiency. They can maintain precise and stable temperature control, making them suitable for applications that require consistent cooling performance.
High Capacity: Water cooled screw chillers often have higher cooling capacities compared to their air cooled counterparts. This makes them suitable for cooling large industrial processes or equipment that generate high heat loads.
Energy Efficiency: Water cooled chillers can achieve higher energy efficiency due to the use of water as a cooling medium. They use less energy compared to air cooled chillers because water has higher heat transfer efficiency.
Reduced Noise Levels: Since the cooling is done using water, the noise levels of water cooled screw chillers are generally lower compared to air cooled chillers. This makes them more suitable for industrial environments where noise is a concern.
Flexibility in Installation: Water cooled chillers offer flexibility in installation as they can be placed indoors or outdoors. They require a separate water cooling tower or a water source for the heat exchange process.
Longer Service Life: Water cooled screw chillers typically have a longer service life compared to air cooled chillers. This is because water cooling helps maintain lower operating temperatures, reducing wear and tear on the compressor and other components.
Environmentally Friendly: Water cooled chillers are considered more environmentally friendly due to their higher energy efficiency, which results in lower greenhouse gas emissions compared to air cooled chillers.
It's important to note that water cooled screw chillers require proper water treatment and maintenance to prevent scaling, corrosion, and bacteria growth in the system. Regular maintenance and monitoring are necessary to ensure optimal performance and longevity of the chiller.

Water cooled screw chiller 50 ton is a specially designed cooling unit which can work efficiently even in an extreme tropical environment. It maintains consistent heat dissipation by chilled water of the condenser. Cooling tower is used together with the water cooled screw chiller. Here is the 100 HP water cooled screw chiller connection:

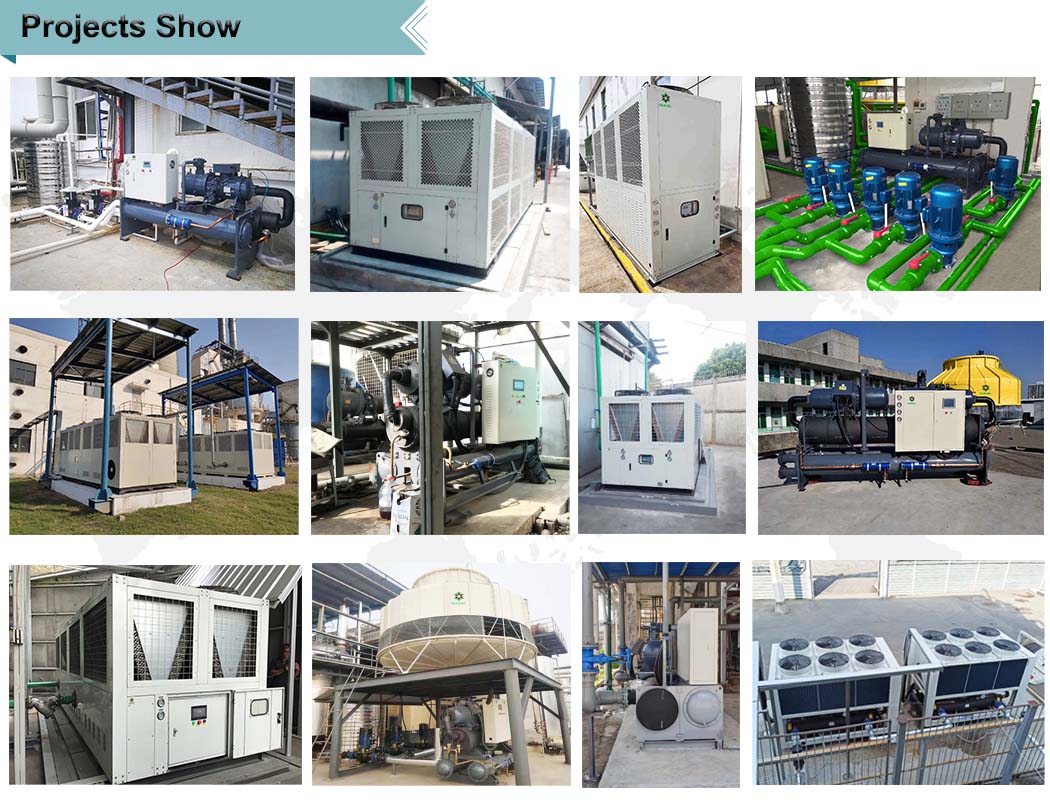

Application of Water Cooled Screw Chiller:

Water-cooled screw chillers are widely used in various industrial and commercial applications to provide efficient cooling solutions. Here are some common applications of water-cooled screw chillers:

HVAC Systems: Water-cooled screw chillers are commonly used in large HVAC systems for cooling office buildings, malls, hotels, hospitals, and other commercial or industrial spaces.

Data Centers: Data centers require precise temperature control to maintain the optimal operating conditions for servers and other hardware. Water-cooled screw chillers are often used to cool the air in data center facilities.

Manufacturing Processes: In industries such as plastic manufacturing, chemical processing, and food processing, water-cooled screw chillers are used to maintain specific temperatures for production processes.

Cold Storage Facilities: Water-cooled screw chillers are essential for maintaining low temperatures in cold storage warehouses for perishable goods like food and pharmaceuticals.

Medical Applications: In hospitals and medical facilities, water-cooled screw chillers are used for various applications, including cooling MRI machines, laboratory equipment, and maintaining stable temperatures in critical areas.

Hotel and Hospitality: Water-cooled screw chillers are used in hotels and resorts to provide cooling for large areas such as lobbies, conference rooms, and guest rooms.

Power Plants: Water-cooled screw chillers are also used in power plants to cool equipment and maintain optimal operating temperatures in various processes.

Event Centers: Large event venues like convention centers and concert halls use water-cooled screw chillers to maintain comfortable temperatures for attendees.

Commercial Buildings: Water-cooled screw chillers are commonly found in large commercial buildings to provide cooling for air conditioning systems throughout the facility.

Overall, water-cooled screw chillers are versatile and reliable cooling systems that can be found in a wide range of applications where efficient and effective cooling is required.

75HP Water Cooled Screw Chiller Product Specification

Water Cooled Screw Chiller Packing & Delivery

The Package of the water cooled screw chiller based on the shipping method.  If LCL shipping, the chiller will be packaged by Plywood package. If FCL, it will be use stretch film.  As this chiller size is about 5CBM, if only 1 set, it will be shipped by LCL.

FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?

Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users

Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.

Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.

Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.

Q6: What's the Brand of the Compressor ？

A6: The Screw type chiller we usually use Hanbell, Bitzer, or Refcomp. Hanbell is the most widely used brand in Screw chillers in China. Regarding the Scroll chiller, we usually use Panasonic, Copeland or Danfoss.
