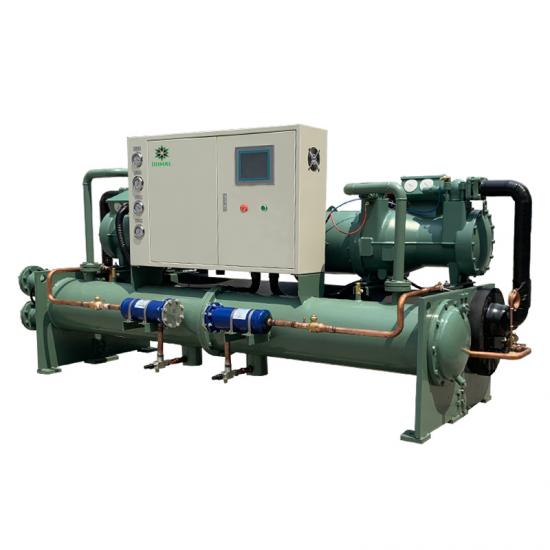

High efficient water cooled industrial screw chillers

High efficient water cooled industrial screw chillers OMC-200WSH, Bitzer semi-hermetic screw compressor cooling capacity 30 ton to 400 ton.
  • Item NO.:

    OMC-200WSH
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    20-30 Working days
  • Order(MOQ):

    1
  • Product Detail

High efficient water cooled industrial screw chillers


Water-cooled screw chiller features large cooling capacity is an energy efficiency water-cooled chiller for both industrial cooling and commercial cooling applications.



OUMAL is a professional water cooled screw chiller manufacturer and supplier for over 15 years of rich experience.

If you can’t stand the noise-making for air-cooled screw chiller, then water cooled screw chiller is your good choice.

The water-cooled screw chiller manufactured from Oumal provide the ideal water cooling solution for sound-sensitive environments.



Designed with a single main rotor compressor which is inherently quieter than twin screw compressor designs, these screw-type water chillers provide some of the lowest sound levels in the industry.



Water-cooled screw chiller can eliminate the need for expensive sound attenuation equipment and save money for the facility owners.



Water-Cooled Screw Chiller Product Information


●:Temperature control 5℃ to 35℃

●:Shell and tube evaporator and condenser

●:Bizer or Hanbell semi-hermetic screw compressor

●:Optional refrigerant R134a,R407c and R404a

●:Schneider Electrical Components

●:PLC/ Touch Screen Control Panel

●:No water tank, connect an external water tank

●:Need to connect a cooling tower

●:Safety protection devices of whole screw chiller

●:All models and cooling capacity available


Water-cooled screw chiller advantage


1. We have the complete products lineup from 30ton to 850ton cooling capacity, can meet your wide operating map for both industrial plant cooling and commercial comfort cooling applications.



2. Our water-cooled screw chillers are designed with one or two refrigerant circuits based on your heat load capacity. Two refrigerant circuits design will improve part-load efficiency to save your electricity consumption.



3. Using a top brand semi-hermetic screw compressor, this single main rotor compressor means inherently quieter operation than dual rotor compressors.



4. The condenser using in water-cooled screw chiller with Perfect forced cooling design, enlarge the cooling capacity, improve refrigerating efficiency. High-efficiency warping tube, enlarge heat exchange area, enhance refrigerant disturbed flow of tube, improving heat exchange rate.



5. Dry Type shell and tube evaporator, with a low quantity of refrigerant sealed, has a good performance of oil return, dispensing with the external oil pump or oil return filter. It has no easy damaged parts and has low costs of maintenance. Anymore the outlet and inlet of the refrigerant appear asymmetric in distribution. By utilizing the refrigerant, it increases the efficiency of heat transfer.



6. Our water-cooled screw chillers connected with solid-state starters are standard to provide controlled acceleration and deceleration with less compressor stress and vibration.



7. All water-cooled screw chillers are charged with environment-friendly refrigerant R407c, R-134a, or R410a has no ozone depletion potential and no phase-out schedule.



8. Each water cooled screw chiller equipped with an advanced microcomputer control system. This clear user-friendly LCD touch Console features. 7-inch LCD touch console, visual, simple, intuitive.

The display makes it easy to view the current operating status and simplify the setting procedure. Various parameters can be confirmed at a glance. Regardless of operating status, the console allows you to set a variety of operation modes. A warning log function makes it possible to recall the latest 10 recent warning events.



9. Our water-cooled screw chiller has complete protections including: safety valve, over-high exhaust temperature protection, screw compressor motor temperature protection, high pressure/low-pressure protection, three-section over current protection, oil heater anti-freezing protection.



10. Water-cooled screw chiller with compact size fits through a 3-foot door will lower the owner’s installation costs.



Water-cooled screw chillers can be widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing, and other industrial refrigeration processes, or in large shopping malls, hotels, factories, hospitals, and other central air conditioning projects where chilled water is used for centralized cooling.



If you are looking for good quality water cooled screw chiller supplier? Please contact us to get an instant price.

screw type chillers for ice rink



Industrial screw chiller Application


Widely used in control products, plastics industry injection and blow molding, metal processing cutting oil, welding equipment, die-casting and machining, chemical, pharmaceutical, industrial processing equipment, food processing mechanisms and various industries of factory machinery cooling.

Products Specification


  Item                        Model

OMC-200WSH

Cooling Capacity

   kcal/h

683356

KW

794.6

Ton

225.9

Btu/h

2711945

Input Power

KW

153.8

Max.running Current

A

392

Power supply


3PH-380V/415V 50HZ(220V/440V  60HZ))

Refrigerant

Type


R22

Charge quantity

kg

140

Control Mode


Expansion Valve

Compressor

Type


Semi-Hermetic Screw

Power

KW

153.8

Start-up Mode


Y-△

Capacity Control

0-25-50-75-100(0-33-66-100)

Evaporator

Type


Shell and Tube

Chilled water flow

m3/h

136.7

Pipe Diameter

lnch

6"

Condenser

Type


Shell and Tube

Cooling water flow

m3/h

163.1

Pipe Diameter

lnch

6"

Dimension

Length

mm

3460

Width

mm

1350

Height

mm

1760

Net Weight

kg

2950

Running Weight

kg

3210

Safety Protection: Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow switch



FAQ


Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: What's your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order

A6: Click Below to fill the table or Call 0086 15112554736
