240 HP Low temperature glycol chiller

240 HP Low temperature glycol chiller OMC-240WDL, -15℃ chilled water outlet temperature, 316 Stainless steel shell and tube condenser and evaporator.
  • Item NO.:

    OMC-240WDL
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    20-30 Working days
  • Order(MOQ):

    1
  • Product Detail

240 HP Low temperature glycol chiller


Chillers can generally be divided into water-cooled and air-cooled according to the type of refrigeration. OUMAL low-temperature glycol chillers (low-temperature water-cooled chillers) are special chillers designed for special low-temperature environments. Its super cooling capacity is for hotels. Food preservation in commercial places such as restaurants, supermarkets, large-scale cold storage meat, seafood, freezing, cold storage, ice making, food processing freezing/cold storage, pharmaceuticals, chemical industries and other low-temperature environments provide reliable protection.



Glycol chillers are suitable for specific chilling applications within the brewery industry. Some typical examples include:



Wort

Brite tanks

Fermenters

Two-stage heat exchangers

Some examples of the industry-specific chillers we offer are:

Brewing Counterflow Chiller

Nano Brewery Chiller

Brew House Chiller


Low temperature glycol Chiller Products Information


●:Temperature control -35℃ to 5℃

●:SS brazed Plate Heat Exchanger or 316 SS shell and tube evaporator

●:Glycol mixture or salt marine suitable

●:Screw or piston compressor available

●:Safety protection covered low-temperature chiller

●:Schneider electrical components

●:PLC / Touch screen/Mic-computer control panel.


Glycol water chiller Product Display


1. The machine adopts the international advanced semi-hermetic screw compressor, the motor and screw are integrated, and there is no worry about shaft seal leakage; Punp microcomputer control; the two units have a cycle control system for stopping and starting, and the balance of the opening and stopping can extend the Service life. Glycol water-cooled screw chiller

2. Refrigeration capacity range: 41KW~1192KW

3. Chilled water outlet temperature: 1, -5~4 degrees adjustable; 2, -15~-5 degrees adjustable; 3, -40~-25 degrees adjustable;

4. Scope of application: The temperature of the ethylene glycol aqueous solution in the production process is required to be between 4 degrees and -35 degrees (according to different production needs, select units with different outlet temperatures)

5. Auxiliary equipment: cooling tower, cooling water pump.

6. Installation conditions: The unit is suitable for indoor installation.

7. Screw chiller design: 24 hours non-stop operation for industrial use.


Low temperautre glycol chiller accessories


Low Temperature Chiller Application


All low-temperature chillers manufactured by OUMAL, supplying constant glycol water is the ideal cooling partner for breweries, wineries, cider mills, and spirits, beverage, dairy milk, yogurt machine, laboratories, semiconductor, medical, pilot plants, and some other applications that require accurate and precise ultra-low temperature control.

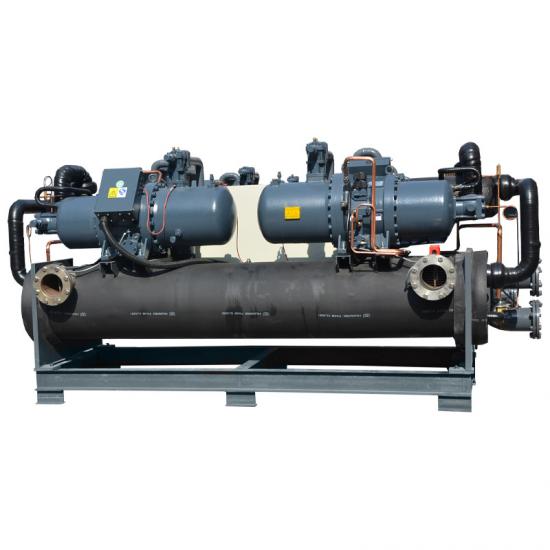

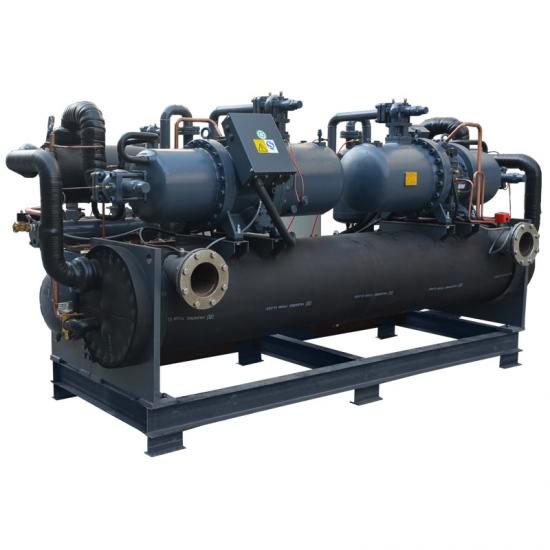

Screw type chiller

Products Specification


    Item                                     Model OMC-240WSL
Norminal  cooling capacity Temp -10℃ 445.4
-20℃ 304.2
-30℃ 190.9
Input Power KW 209.6
Power Supply 3PH-380V/415V 50HZ(220V/440V  60HZ))
Refrigerant Type R22 (R404A)
Control Mode Expansion Valve
Compressor Type Semi-Hermetic Screw
Power KW  209.6
Start-up Mode Y-△
Capacity Control 0-25-50-75-100 (0-33-66-100)
Evaporator Type Temp Shell and Tube
Chilled Water Flow -10℃ m3/h 76.6
-20℃ 52.3
-30℃ 32.7
Pipe Diameter Inch 6”
Condenser Type Shell and Tube
Cooling water flow m3/h 112.3
Pipe Diameter Inch 6"
Dimension Length mm 2750
Width mm 1050
Height mm 1600
Net Weight kg 3160
Running Weight kg 3400
Safety Protection: Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow  switch



Package and Shipping




FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order?

A6: Click Below to fill the table or Call 0086 15112554736
