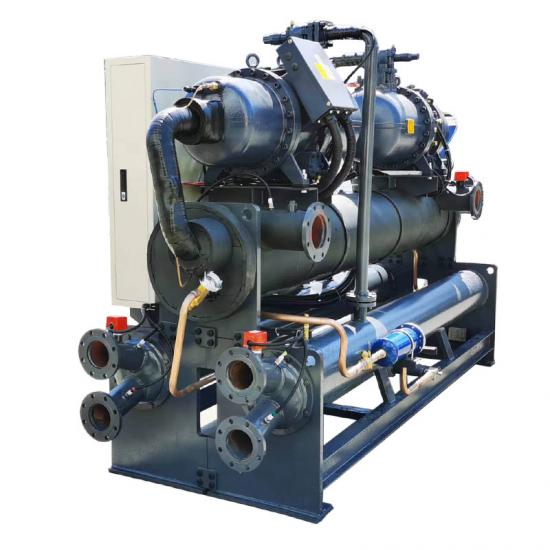

140 HP Water Cooled Screw Chiller

140HP Water Cooled Screw Chiller With Hanbell Screw Compressor

140 HP Water Cooled Screw chiller with Hanbell Screw compressors is high efficiency water cooled chiller. Cooling Capacity with 120 Ton Water Cooled Screw Chiller build in Siemens PLC Controller. Scheinder Electric Parts, Emerson Expansion Valve, Emerson dry filter, LS Air switch. High quality and more stable. Oumal Screw chiller use Hanbell or Bitzer high quality semi-hermertic screw compressor.  OUMAL is a Reliable screw chiller supplier with good screw chiller price with high quality including air cooled screw chiller and water cooled screw chiller. We have experienced refrigeration engineers to make professional solution for your cooling water systems. If you are looking for water cooled screw chiller factory, please feel free to contact us to get the screw chiller price.

120 Ton Water Cooled Screw Chiller Product Information

Temperature control 5ºC to 35ºC
High quality Shell and tube evaporator and condenser
Bizer or Hanbell semi-hermetic screw compressor
Optional refrigerant R134a,R407c and R404a, R22.
Safety protection devices of whole screw chiller

Siemens PLC controller system With HDMI Touch Screen
All models and cooling capacity available Temperature control 5℃ to 35℃. Lower temperature water cooled screw chiller can be customized.

Water-cooled screw chiller advantage

Well Known Brand Compressor

• Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.
• Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running. Compressor start-up in stages, minimize the impact to electricity. Steady and safe running with low vibration.
• Most advanced patented highest precision manufacturing process.
• Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.

Microprogramming Control System

• LCD touch screen interface. Industrial Siemens PLC centralized control combined with compressor capacity control system, precisely monitor.
• Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
• Optional operation language, menu leading, unit running state easy to adjust.

A variety of refrigerants and power source are available

• Standard design charged R22 CFC Free R407C, R410A, R404A, R134A for option.
• 380V-415V/50Hz 3pH for standard design. 380V~415V, 50HZ/60HZ, different design on customers' request.

Easy installation, quality is assured

• Compact structure, less space demand and light in weight, easy for transport and installation.
• Completely wired, inspected and tested pre-delivery, saving installation time and cost.

If you are looking for good quality water cooled screw chiller supplier? Please contact us to get an instant price.

Screw type chiller Application

As Screw type chiller usually with large cooling capacity. It's widely used in plastic industry, concrete mixing， HAVC system. The screw chiller has compact structure, stable operation, stepless adjustment of cooling capacity, good energy saving, and few wearing parts. Suitable for high-rise buildings, hotels, restaurants, hospitals, scientific research institutes and other large and medium-sized air-conditioning and refrigeration systems with a cooling capacity of 580~1163kW.

300 TR water cooled screw products Specification

Shipping And Delivery

Delivery time of the Screw Chiller is 20-30 Working Days.

Shipping by sea with Plywood Package or fill packing in the container.

FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?

Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users

Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.

Q4: What's your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.

Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.

Q6: How can i Place an order?

A6: Click Below to fill the table or Call 0086 15112554736.
