100 tr Pacakged water cooled screw chiller

100 tr Pacakged water cooled screw chiller OMC-100WSH. 100 ton water cooled screw chiller build with housing, prevent dust and easy to clean.

  • Item NO.:

    OMC-100WSH
  • Payment:

    T/T, L/C,West Union
  • Product Origin:

    China
  • Color:

    Customize
  • Shipping Port:

    Shekou or Yantian Port
  • Lead Time:

    15-30 working days
  • Order(MOQ):

    1 set
  • Product Detail

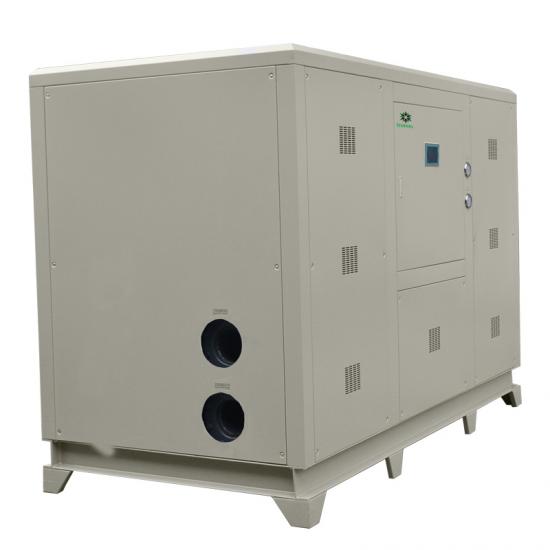

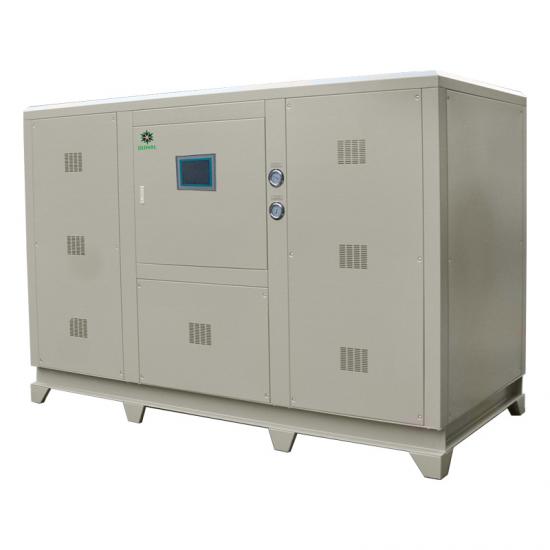

100 tr Pacakged water cooled screw chiller


Normally, The water cooled screw chiller is not build with housing, While some water chiller need to install in the place where it is heavy oil and dust, in order to protect the chiller and easy to clean the chiller, We will suggest the customer build with housing outside the water cooled screw chiller. Like the packaged water cooled chiller. The Packaged water cooled screw chiller is also a kind of custom water cooled chiller. It use the semi-hermetic screw compressor, Hanbell from Taiwan or Bitzer from Germany optional. Shell and tube condenser, Shell and tube evaporator, If the chiller need to work with sea water, the evaporator and condenser would be use 316 Stainless Steel materials. As the packaged water cooled screw chiller need to add the housing,so the cost of the packaged water cooled screw chiller is a littler higher,  the packaged water cooled screw chiller price is a little higher than the common water cooled screw chiller.


Packaged Water-Cooled Screw Chiller Product Information

  • Screw water chiller Temperature control 5℃ to 35℃
  •  water cooled screw chiller Cooling capacity: 110kw~865kw
  • Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Cooling water inlet temperature is 30 degrees, outlet temperature is 35 degrees
  • Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%.
  •  Measuring noise spot: 2m ahead and 1.5m high in front of chiller with average measurement on four dimensions.
  • Semi-closed 5: 6 asymmetric twin-screw compressor from world-renowned brand, trouble-free operation over 100000 hours.
  • Four stages volume control or 0%-100% automatic regulation.
  • Fluoride-resistant high-performance motor from French.
  •  Use PLC microcomputer control from Germany Siemens LCD touch screen, both English and Chinese human-machine interface.
  •  Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.
  •  Friendly choose to use environmentally R407C or R134A refrigerant.

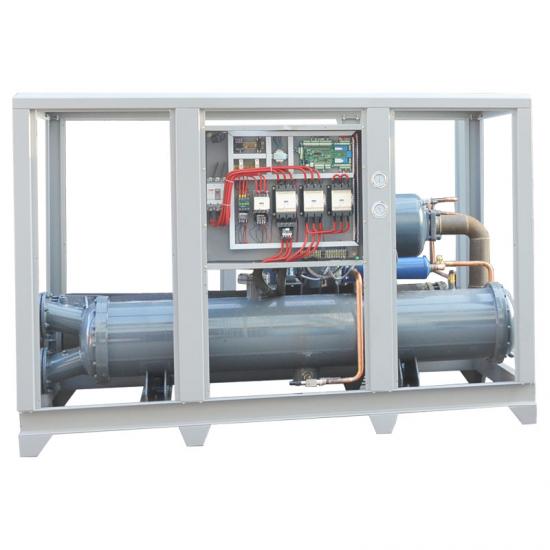

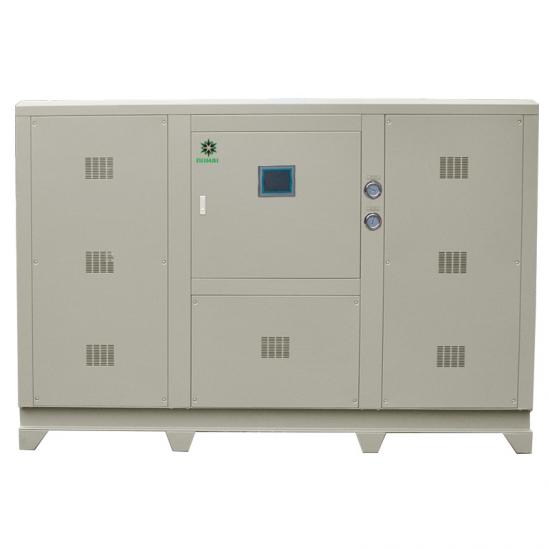

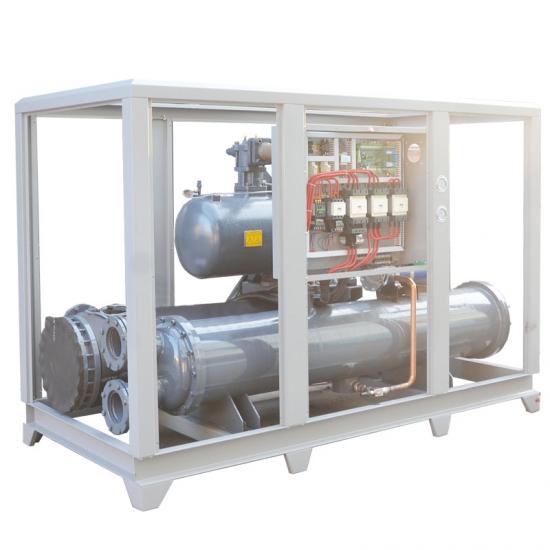

Water cooled screw chiller Product display


Compressor features:

•New screw type compressor with 20%-30% higher in efficiency.

•Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.

•High efficiency, low noise and vibration, easy to install.

•Environmental protection refrigerant R134a, R407c available.


Control operation system:

•SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.

•Extended industrial interface, convenient for being computer monitor via network.


Completely safety protection function:

•Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.


100 TR Water Cooled Screw Chiller Application

Packaged water cooled screw chiller can be used in the below industry: plastic industry (including injection molding, blister, extrusion, blowing, etc.), electroplating industry (electrophoresis, anodizing), electronics industry (for example: PCB drilling machine, exposure machine, wave soldering, reflow soldering, etc.) Temperature control), laser machine temperature control, chemical industry (mainly reactor temperature control), laboratories, food industry, dyeing industry, hotel refrigeration, central air-conditioning.

Screw Chiller Application


100 Ton Screw chiller Product Specification


Item Model

OMC-100WSH

Cooling Capacity

   kcal/h

321554

KW

373.9

Ton

106.3

Btu/h

1276109

Input Power

KW

73.1

Max.running Current

A

194

Power supply


3PH-380V/415V 50HZ(220V/440V  60HZ))

Refrigerant

Type


R22

Charge quantity

kg

70

Control Mode


Expansion Valve

Compressor

Type


Semi-Hermetic Screw

Power

KW

73.1

Start-up Mode


Y-△

Capacity Control

0-25-50-75-100 (0-33-66-100)

Evaporator

Type


Shell and Tube

Chilled water flow

m3/h

64.3

Pipe Diameter

lnch

4"

Condenser

Type


Shell and Tube

Cooling water flow

m3/h

76.9

Pipe Diameter

lnch

4"

Dimension

Length

mm

2850

Width

mm

1100

Height

mm

1800

Net Weight

kg

1900

Running Weight

kg

2000

Safety Protection:Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow switch


Packing & Shipping


plastic process cooling system


FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order

A6: Click Below to fill the table or Call 0086 15112554736
