Food Proceeding Low Temperature Chiller

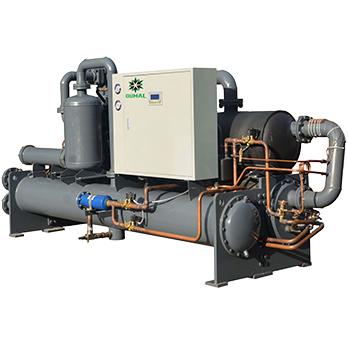

Food Proceeding Low Temperature Industrial Water Cooled Chiller OMC-120WDL.

Water cooled screw type low temperature chiller, temperature lower to -35 ℃

  • Item NO.:

    OMC-120WDL
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    20-30 Working days
  • Order(MOQ):

    1
  • Product Detail

Food Proceeding Low Temperature Industrial Water Cooled Screw Chiller



Low-temperature chillers are very popular and important parts of modern industries and various applications.

All low-temperature chillers manufactured by OUMAL, supplying constant glycol water is the ideal cooling partner for breweries, wineries, cider mills, and spirits, beverage, dairy milk, yogurt machine, laboratories, semiconductor, medical, pilot plants, and some other applications that require accurate and precise ultra-low temperature control.


We can say OUMAL brand low-temperature chiller is your best industrial cooling and refrigeration system partner for your plant and industrial process.

Each low-temperature chiller developed by OUMAL features a compact design with high-quality locking casters. OUMAL low-temperature chillers are optimized to your load point for maximum refrigeration efficiency.

The low-temperature chillers can also provide big refrigeration capacity cooling from 2Ton to 180Ton for demanding applications with a small footprint.

Low-temperature chillers designed and manufactured by OUMAL guarantee exceptional performance and unmatched reliability.

As a professional low-temperature chiller manufacturer, OUMAL has exported many low-temperature chillers from 2ton to 80Ton capacity to worldwide countries and regions.

Our major market including the Philippines, Australia, New Zealand, Malaysia, Singapore, Indonesia, Chile, Mexico, Costa Rica, Brazil, Argentina, Colombia, South Africa, Nigeria, Saudi Arabia, Dubai, Spain, Italy, etc.

If you are looking for a high reputation low-temperature chiller supplier in the market?

If you want to buy a new low-temperature chiller for your plant?

OUMAL with good quality & cooling performance is your first choice. Please do contact OUMAL sales to get a free quotation.


 Low temperature chiller products information


●:Temperature control -35℃ to 5℃

●:SS brazed Plate Heat Exchanger or 316 SS shell and tube evaporator

●:Glycol mixture or salt marine suitable

●:Screw or piston compressor available

●:Safety protection covered low-temperature chiller

●:Schneider electrical components

●:PLC / Touch screen/Mic-computer control panel


 Products Display


High-quality low-temperature chiller designed by OUMAL features outstanding advantages as below:

1. Selected imported semi-hermetic scroll, piston, or screw compressors have high refrigeration efficiency and excellent cooling performance.

2. The original Schneider Electric guarantees low-temperature chiller safe operation and long working hours.

3. Low-temperature chiller with high-efficiency water pump, large flow, power-saving, and durable.

4. The concise design of our low-temperature chiller is easy to install, easy to operate, and easy to clean and maintain.

5. The low-temperature chiller with dry shell and tube or stainless steel plate evaporator with high energy efficiency.

6. High-efficiency fin condenser for air-cooled low-temperature chiller.

7.  Dry Shell and Tube Condenser—Water-cooled low-temperature chiller.

8 . R410A, R404A refrigerant is charged for low-temperature chiller.

9. 380V / 50HZ 3PH standard design power supply voltage, can be customized according to different requirements of customers.



Low temperature industrial chiller application


The low-temperature chiller is a new generation of low-temperature freezing equipment designed for special industries such as medicine, chemical industry, beverage filling, food processing, photovoltaics, etc. Its temperature range can be automatically adjusted between 30 degrees and minus 120 degrees. The refrigeration range is 14200-2036600Kcal/h, and the chilled water temperature range is -350C-100C. The pressure control and safety valve device of the refrigeration system ensure the safety of the unit.

Products Specification


    Item                                    Model OMC-120WDL
Norminal cooling capacity Temp -10℃ 205
-20℃ 142
-30℃ 88.6
Input Power KW 101.6
Power Supply 3PH-380V/415V 50HZ(220V/440V  60HZ))
Refrigerant Type R22 (R404A)
Control Mode Expansion Valve
Compressor Type Semi-Hermetic Screw
Power KW  101.6
Start-up Mode Y-△
Capacity Control 0-25-50-75-100 (0-33-66-100)
Evaporator Type  Temp Shell and Tube
Chilled water flow -10℃ m3/h 35.3
-20℃ 24.4
-30℃ 15.2
Pipe Diameter Inch 4"
Condenser  Type Shell and Tube
Cooling water flow m3/h 52.6
Pipe Diameter Inch 4"
Dimension Length mm 2750
Width mm 1050
Height mm 1730
Net Weight kg 2230
Running Weight kg 2470
Safety Protection: Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow switch


Package & Shipping


FAQ


Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order

A6: Click Below to fill the table or Call 0086 15112554736


Want to know about this product?

SEND A MESSAGE
Something isn’t Clear?

Feel free to contact me, and I will be more than happy to answer all of your questions.

Related Products
Low temperature chiller
Low Temperature Chiller Water-cooled Screw Type Chiller
Low Temperature Screw type Chiller water cooled OMC-200WDL,Temperature can be lower to -35 ℃. Semi-Hermetic Screw Type compressor Hanbell or Bitzer Brand can be optional.
Low temperature screw chiller
Double Compressors Water-cooled Low Temperature Screw Chiller
Double Compressors Water-cooled Low Temperature Screw Chiller OMC-240WDL. Adopt Glycol antifreeze, Temperature lower to -35℃. 2 sets Hanbell Screw Compressors High Efficient,long life.
Low temperature screw chiller
200kw anti-corrosion low temperature water cooled screw chiller with -12C outlet water temperature
The 12C outlet water temperature chiller use high quality Nickel-nickel copper tube + 316 stainless steel shell and tube evaporator. Build in 2 sets of Hanbell semi-hermetic screw compressors. Controller build in Siemens PLC + WeiView HMI. Intelligent temperature control, easy to operate.
25 ton explosion-proof chiller
25 Ton Water-Cooled Explosion-Proof Chiller
25 Ton Water-Cooled Explosion-Proof Chiller OMC-30W. Explosion-proof chillers are special chillers, mainly used in special places such as flammable and explosive.
30HP Air cooled chiller limited size
Factory customize limited size 30HP air cooled scroll chiller
The 30HP air cooled chiller use top blowing and side blowing because the chiller installation size is limited. As the chilller is installed on the truck, the Width, Length,Height all limited. To guarantee the cooling capacity, we design 3 condensers with enough copper tube, totally 9 cooling fans.
piston type air cooled chiller
40 HP air cooled chiller piston type compressor
Piston type compressor air cooled chiller 40HP OMC-40A. Use Copeland semi-hermetic Piston compressor or Bitzer semi-hermetic Piston compressor.
100 ton screw chiller
100 Ton screw type compressor water cooled chiller
100 Ton screw type compressor water cooled chiller  OMC-100WSH, Hanbell screw compressor, high efficient, Double compressors optional.
water cooled screw chiller with housing
100 tr Pacakged water cooled screw chiller
100 tr Pacakged water cooled screw chiller OMC-100WSH. 100 ton water cooled screw chiller build with housing, prevent dust and easy to clean.
large capacity chiller
Large capacity water cooled screw chiller OMC-360WDH
Large capacity water cooled screw chiller OMC-360WDH. Cooling Capacity 300Ton to 500 Ton screw compressors, Hanbell or Bitzer Brand optional. Cooling water temperature 5ºC-35ºC. Lower temperature can be customized.
