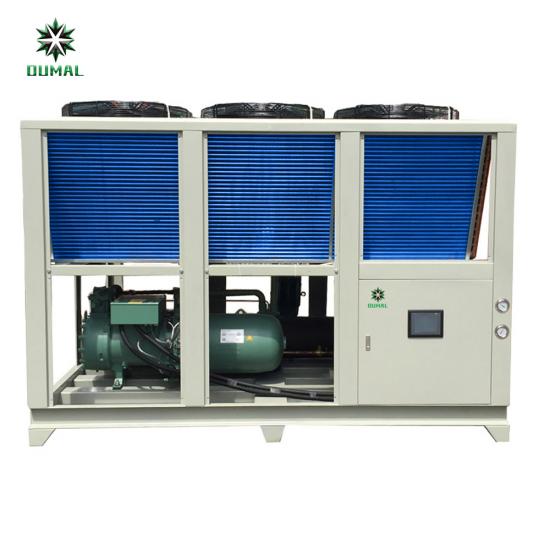

60TR Chiller with Hanbell / Bitzer Screw Compressor

60TR Chiller with Hanbell Screw Compressor

The 60tr Chiller is widely used in industrial processing cooling water system. Since the core component of a chiller is the compressor, specifically a screw compressor, and the condenser is air-cooled, it is called an 60tr air-cooled screw chiller. The 60tr air cooled screw chiller equiped high quality semi-hermetic screw compressor Brand Hanbell or Bitzer. Also can use Refcomp if you are sensitive about the 60tr chiller price.

As a professional manufacturer of industrial chillers, we are fully equipped to address your specific requirements for a 60TR chiller. Whether your primary focus is on price or quality, we will provide you with expert advice and customized configurations to ensure that you secure a cooling water system solution offering the highest value for money—all backed by our quality assurance.

Air cooled screw chillers offer several advantages in industrial cooling applications:

Easy installation: Air cooled screw chillers do not require a separate cooling tower or water source, making them easier and more cost-effective to install. They can be placed directly at the site where cooling is needed.

Energy efficient: Air cooled screw chillers utilize an air-cooled condenser that transfers heat to the ambient air. This eliminates the need for water consumption and reduces the energy required for cooling. They are particularly suitable for areas with limited water availability or strict water usage regulations.

Lower operational costs: Since air cooled screw chillers do not rely on cooling towers and associated water treatment systems, they have lower maintenance and operating costs compared to water-cooled chillers. They also do not require regular monitoring of water quality or chemical treatments.

Flexibility in placement: Air cooled screw chillers can be placed indoors or outdoors, offering more flexibility in site selection. They can be installed on rooftops or in areas where water cooling is not feasible.

Suitable for variable load conditions: Air cooled screw chillers typically have a wide operating range and can handle varying cooling loads. They are equipped with multiple compressors that can modulate their capacity to match the cooling demand, resulting in energy savings during partial load conditions.

Compact design: Air cooled screw chillers are designed to be compact and space-saving. They integrate the compressor, condenser, and evaporator into a single unit, reducing the overall footprint required for installation.

Lower water consumption: As the name suggests, air cooled screw chillers use air as a cooling medium instead of water. This reduces water consumption and eliminates the need for a water treatment system, resulting in water savings.

Reliability: Air cooled screw chillers are known for their reliable operation and durability. They are designed to handle demanding industrial environments and can provide consistent cooling performance.

It is important to consider factors such as cooling capacity, efficiency, noise levels, and specific cooling requirements when selecting an air cooled screw chiller for a particular application.

Compressor features:

•New screw type compressor with 20%-30% higher in efficiency.

•Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.

•High efficiency, low noise and vibration, easy to install.

•Environmental protection refrigerant R134a, R407c available.

Control operation system:

•SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.

•Extended industrial interface, convenient for being computer monitor via network.

Completely safety protection function:

•Multisafety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.

Air-Cooled Screw Chiller Products Information

Features:
1. The compressor adopts the international brand. The original imported international brand BITZER Germany (Bitzer) HANBELL China Taiwan (Hanbell), a new type of high-efficiency screw rotor compressor, the efficiency is 20%-30% higher than the general compressor.
2. High efficiency 5:6 patented asymmetric rotor tooth profile.
3. Capacity control can adopt four-stage (100%-75%-50%-25%) or three-stage (100%-66%-33%) and stepless control system.
4. The combined design of 11 bearings and a-type axial thrust balance drum greatly increases the bearing life by 2.5-3.5 times.
5. The use of high-efficiency silicon steel sheet special groove design, and equipped with internal and external omnidirectional design cooling channel, so that the compressor motor can play the highest efficiency under any load.
6. The unique built-in oil pressure system does not need an oil pump to ensure that the compressor maintains the best lubrication effect. The oil separator adopts a double-layer filter method, which has a good oil filtering effect and the heat exchanger can exert its maximum capacity.
7. High efficiency, low noise and low vibration.
8. A variety of refrigerants are available. In addition to R22 refrigerant, environmentally friendly refrigerants such as R134a and R407c can also be used.

Application range of air-cooled screw chiller:

Product Application of air cooled water chillers are used for controlled cooling temperature of products, mechanisms and factory machinery in a wide range . Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile...

Product Specification

Specification Based on 10 C Outlet temperature

Packing & Shipping

Packing for LCL transportation Bulk carge

Packing & Loading Full container transportation

FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?

Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users

Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.

Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.

Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.

Q6: How can i Place an order ?

A6: Click Below to fill the table or Call 0086 15112554736
