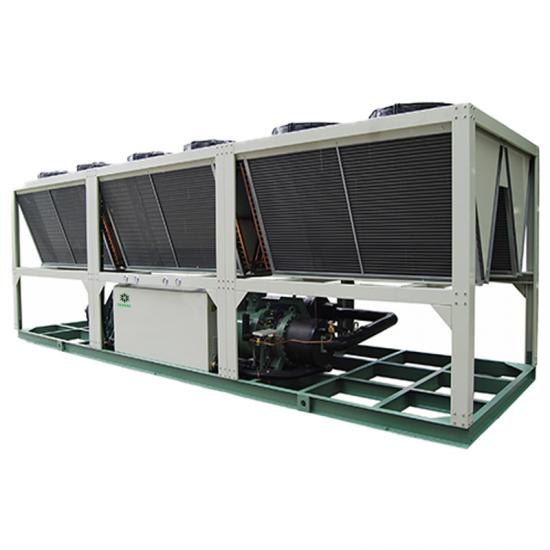

Large cooling capacity air cooled chiller 200HP

Large cooling capacity air cooled chiller 200 HP screw chiller OMC-200ADH.  LCD Touch screen controller or PLC temperature controller, High temperature control accuracy.
  • Item NO.:

    OMC-200ADH
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN SHEKOU or YANTIAN PORT
  • Lead Time:

    20-30 WORKING DAYS
  • Order(MOQ):

    1
  • Product Detail

Large cooling capacity air cooled chiller 200 HP


200HP Large cooling air cooled screw chiller use High efficient semi-hermetic screw compressor, World  Famous Brand compressor Bitzer or Hanbell.

 OUMAL air cooled screw chiller adopts branded screw type compressor with low noise & vibration, which provides superior performance while lowering energy consumption and dramatically reducing noise levels. High efficient copper condenser and evaporator are made with fined copper tube for heat exchange. Also famous control components ensure stability, durability and reliability. OUMAL   air cooled screw chiller systems comes with Eco-friendly R- 407c refrigerant able to delivery excellent performance at high ambient temperature condition. In a word, OUMAL   air cooled screw chiller unit features   high cooling capacity from 30 Ton to 500 Ton , but these air screw chillers comes with compact size, easy operation and maintenance.

Screw chiller systems by air cooled with various cooling capacity are available in many models. Just see following specifications for the air screw chiller systems, or just contact us with your cooling requirements and our engineer will diagnose and select suitable models as per your needs.


If you are looking for large cooling capacity air chiller, please feel free to contact our sales to get the best solution for you. Oumal is a professional air ooled screw chiller supplier over 15 years experience. We also make water-cooled screw chiller, air-cooled scroll chiller, water-cooled screw chiller, piston compressor chiller, small air chiller, open type water cooled chiller, OEM are welcomed.


Air-Cooled Screw Chiller Products Information


Features:
1. The compressor adopts the international brand. The original imported international brand BITZER Germany (Bitzer) HANBELL China Taiwan (Hanbell), a new type of high-efficiency screw rotor compressor, the efficiency is 20%-30% higher than the general compressor.
2. High efficiency 5:6 patented asymmetric rotor tooth profile.
3. Capacity control can adopt four-stage (100%-75%-50%-25%) or three-stage (100%-66%-33%) and stepless control system.
4. The combined design of 11 bearings and a-type axial thrust balance drum greatly increases the bearing life by 2.5-3.5 times.
5. The use of high-efficiency silicon steel sheet special groove design, and equipped with internal and external omnidirectional design cooling channel, so that the compressor motor can play the highest efficiency under any load.
6. The unique built-in oil pressure system does not need an oil pump to ensure that the compressor maintains the best lubrication effect. The oil separator adopts a double-layer filter method, which has a good oil filtering effect and the heat exchanger can exert its maximum capacity.
7. High efficiency, low noise and low vibration.
8. A variety of refrigerants are available. In addition to R22 refrigerant, environmentally friendly refrigerants such as R134a and R407c can also be used.



Screw type air chiller Product Display


●: Chiller cooling capacity from 30Ton to 500Ton
●: Hanbell / Bitzer Semi-hermetic screw type compressor
●: Large Copper condensing Coil with Aluminum Fins
●: No water tank, connect an external water tank
●: Temperature control from 7℃to 35℃
●: Closed loop shell and tube evaporator
●: Schneider Electrical Components
●: PLC/ Touch Screen Control Panel
●: No need to install a cooling tower

200 HP Air Cooled Screw Chiller


Application range of air-cooled screw chiller:


Plastic industry: accurately control the mold temperature of various plastics processing, shorten the plastic molding cycle, and ensure the stability of product quality.

Electronics industry: Stabilize the molecular structure of electronic components on the production line, improve the qualification rate of electronic components,

Electroplating industry: control the electroplating temperature, increase the density and smoothness of the plated parts, shorten the electroplating cycle, and improve the production efficiency

Construction industry: supply chilled water for concrete to make the molecular structure of concrete suitable for the requirements of construction purposes, effective Enhance the hardness and toughness of concrete.

Vacuum coating: control the temperature of the vacuum coating machine to ensure the high quality of the coated parts.

Food industry: used for high-speed cooling after food processing to adapt to packaging requirements. There is also controlled fermentation, The temperature of the food, etc.

Chemical fiber industry: freeze-dry air to ensure product quality.

Dairy products, beverages; the production process often requires rapid cooling after heating, The steel pipe, water tank, and water pump of the chiller are required to be made of stainless steel to meet sanitary requirements.

Medicines, biological products; low temperature and low humidity environment is required during production and storage.

The line needs to be heated to reach a certain temperature before starting, and it needs to be cooled by chilled water due to its own heat generation after starting

To keep the temperature low.

Tempered glass; the general glass is heated at high temperature and then quickly cooled, the cooling water temperature should not be too high, otherwise

Will affect the quality of tempering. The industrial chiller is used to provide frozen water for cooling, and the water temperature does not love the influence of the ambient temperature.

Ensure the quality of the product.

Aquaculture; hotels, seafood restaurants, seafood farms, aquariums, providing frozen water in summer and heat in winter.

Air cooled chiller application

Product Specification


      Item                    Model OMC-200ADH
Cooling Capacity     kcal/h              562268
KW  653.8
Ton 185.9
Btu/h 2231399
Input Power KW  210.4
Max.running Current A 464
Power 3PH-380V/415V 50Hz (3PH-220V/440V 60Hz )
Refrigerant Type R22 ( R407C )
Charge quantity kg 140
Control Mode Expansion Valve
Compressor Type Semi-Hermetic Screw
Power KW  96.2 x 2
Start-up Mode Y-△
Capacity control 0-25-50-75-100 (0-33-66-100)
Evaporator Type Shell and tube
Chilled water flow m3/h 112.5
Pipe Diameter lnch 4"
Condenser Type Air cooled high-efficient inner threaded copper-tubing aluminum fin type
Fan Type Low noise outer rotor
Power KW  18
Cooling air flow m3/h 200000
Dimension Length mm 7800
Width mm 2000
Height mm 2200
Net Weight kg 4850
Running Weight kg 5120
Safety Protection: compressor over heat protection, over load protection,high and low pressure protection,reversed and lacking phase protection, anti-freezing protection, flow switch


Packing & Shipping


water chiller delivery


FAQ


Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order ?

A6: Click Below to fill the table or Call 0086 15112554736
