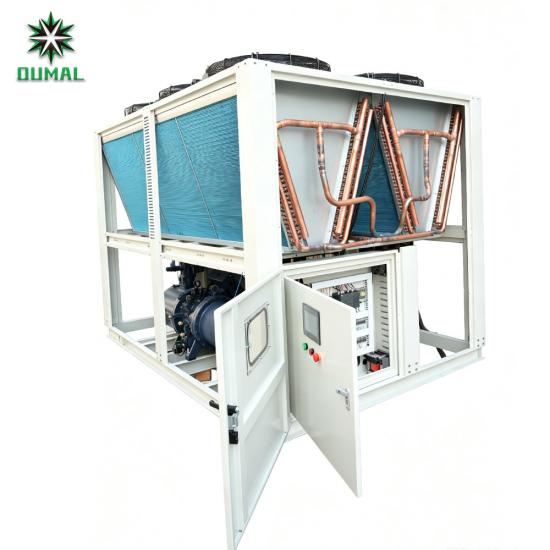

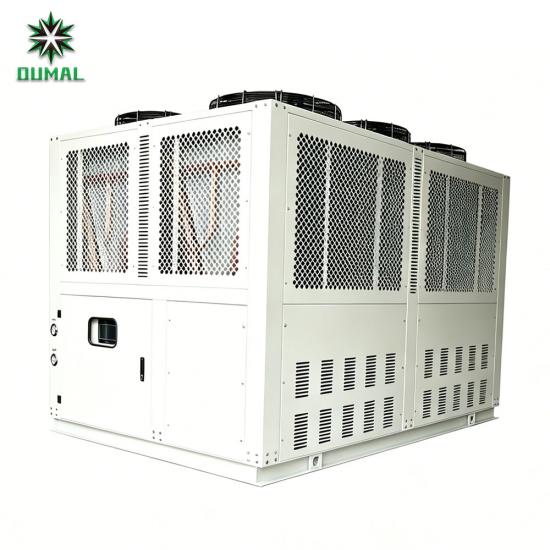

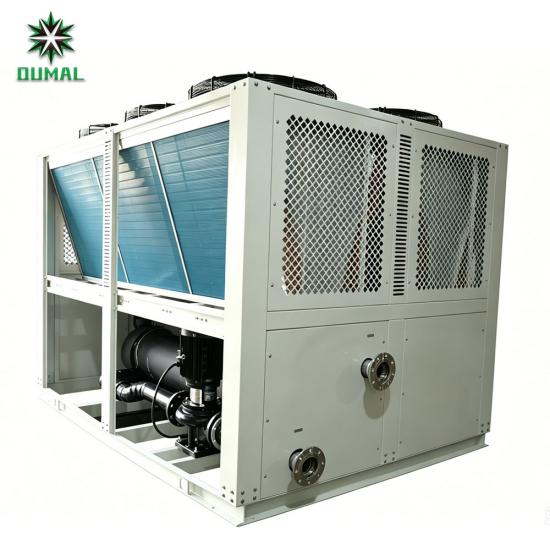

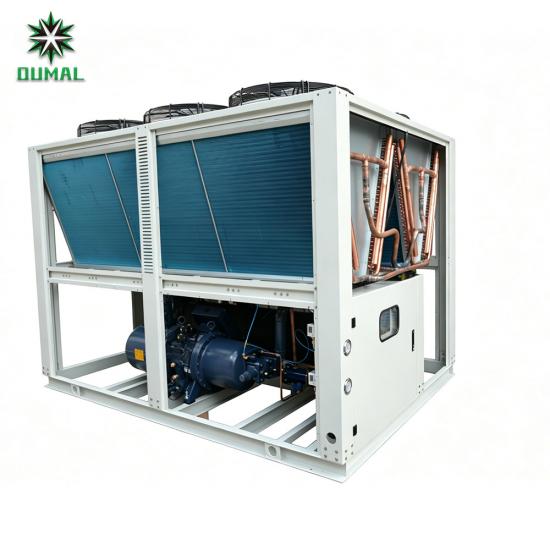

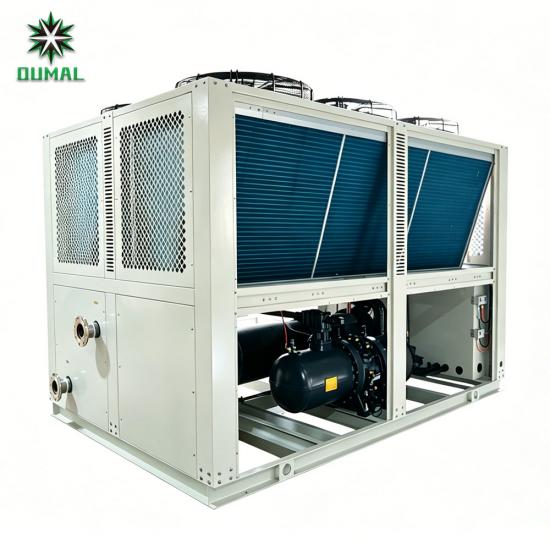

60TR Chiller with Hanbell Screw Compressor
The chiller supports custom power supply specifications to match the power supply standards of different regions and factory sites, achieving strong universal adaptability. Adopting air-cooled heat dissipation, it saves water resources and avoids the configuration of cooling towers, enabling flexible installation in water-shortage areas, space-limited workshops, and outdoor environments. Widely applicable in chemical, plastic, electronic, electroplating, mechanical processing, food and pharmaceutical, textile and printing industries, it serves as an ideal refrigeration solution for industrial production cooling, equipment constant temperature maintenance and process cooling.
As a professional manufacturer of industrial chillers, we are fully equipped to address your specific requirements for a 60TR chiller. Whether your primary focus is on price or quality, we will provide you with expert advice and customized configurations to ensure that you secure a cooling water system solution offering the highest value for money—all backed by our quality assurance.
60TR Air Cooled Industrial Water Chiller offer several advantages in industrial cooling applications:
Easy installation: Air cooled screw chillers do not require a separate cooling tower or water source, making them easier and more cost-effective to install. They can be placed directly at the site where cooling is needed.
Energy efficient: Air cooled screw chillers utilize an air-cooled condenser that transfers heat to the ambient air. This eliminates the need for water consumption and reduces the energy required for cooling. They are particularly suitable for areas with limited water availability or strict water usage regulations.
Lower operational costs: Since air cooled screw chillers do not rely on cooling towers and associated water treatment systems, they have lower maintenance and operating costs compared to water-cooled chillers. They also do not require regular monitoring of water quality or chemical treatments.
Flexibility in placement: Air cooled screw chillers can be placed indoors or outdoors, offering more flexibility in site selection. They can be installed on rooftops or in areas where water cooling is not feasible.
Suitable for variable load conditions: Air cooled screw chillers typically have a wide operating range and can handle varying cooling loads. They are equipped with multiple compressors that can modulate their capacity to match the cooling demand, resulting in energy savings during partial load conditions.
Compact design: Air cooled screw chillers are designed to be compact and space-saving. They integrate the compressor, condenser, and evaporator into a single unit, reducing the overall footprint required for installation.
Lower water consumption: As the name suggests, air cooled screw chillers use air as a cooling medium instead of water. This reduces water consumption and eliminates the need for a water treatment system, resulting in water savings.
Reliability: Air cooled screw chillers are known for their reliable operation and durability. They are designed to handle demanding industrial environments and can provide consistent cooling performance.
It is important to consider factors such as cooling capacity, efficiency, noise levels, and specific cooling requirements when selecting an air cooled screw chiller for a particular application.
Compressor features:
•New screw type compressor with 20%-30% higher in efficiency.
•Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
•High efficiency, low noise and vibration, easy to install.
•Environmental protection refrigerant R134a, R407c available.
Control operation system:
•SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
•Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
•Multisafety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
Application range of air-cooled screw
chiller:
Product Application of air cooled water chillers are used for controlled cooling temperature of products, mechanisms and factory machinery in a wide range . Plastics – injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile...

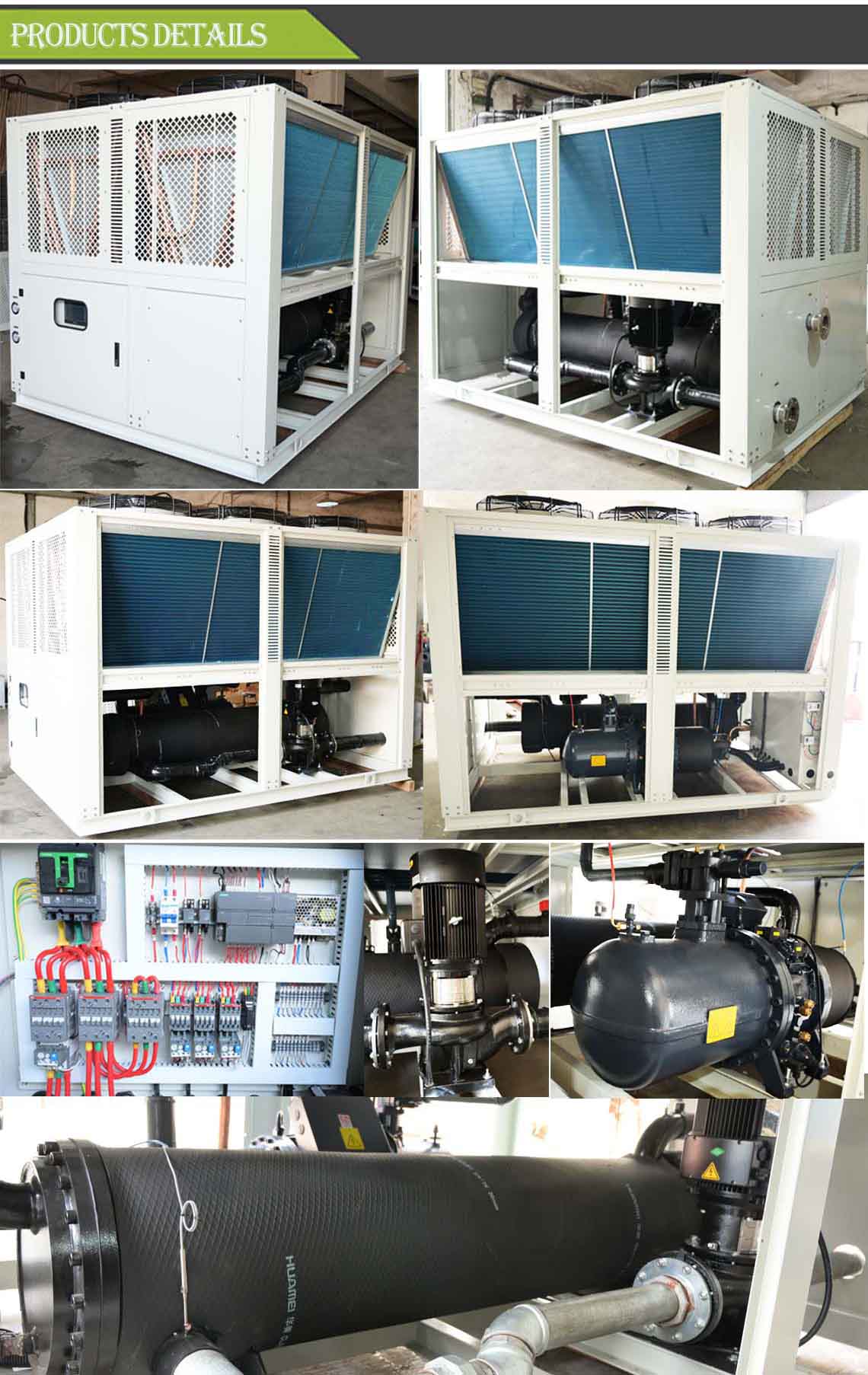

Product Specification
| Item Model | OMC-70ASH | ||
| Cooling Capacity | kcal/h | 181460 | |
| KW | 211 | ||
| Ton | 60 | ||
| Input Power | KW | 75.3 | |
| Max. running current | A | 171 | |
| Power | 3ph-380V-50Hz | ||
| Refrigerant | Type | R407C / R404A/ R513A /R134A | |
| Charge quantity | kg | 53 | |
| Control Mode | Expansion Valve | ||
| Compressor | Type | Semi-Hermetic Screw | |
| Power | KW | 69.9 | |
| Start-up Mode | Y-△ | ||
| Capacity control | ％ | 0-25-50-75-100 (0-33-66-100) | |
| Evaporator | Type | Dry type Shell and Tube | |
| Chilled water flow | m3/h | 36.3 | |
| Pipe Diameter | lnch | 3＂ | |
| Condenser | Type | Air cooled high-efficient inner threaded copper-tubing aluminum fin type | |
| Fan | Type | Low noise outer rotor | |
| Power | KW | 5.4 | |
| cooling air flow | m3/h | 70000 | |
| safety protection |
compressor over heat protection, over load protection, high and low pressure protection, reversed and lacking phase protection, anti-freezing protection, flow switch |
||
| Dimension | Length | mm | 3200 |
| Width | mm | 1850 | |
| Height | mm | 2200 | |
| Net Weight | kg | 2260 | |
| Running Weight | kg | 2420 | |
Packing & Shipping
Packing for LCL transportation Bulk carge
Packing & Loading Full container transportation
FAQ
Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:
1)Cooling capacity;
2)chilled water inlet and outlet temperature
3)chilled water flow
4) Refrigerant;
5) Ambient temperature;
6)Voltage;
7) Be used for what industry?
8)Any other special requirements?
Q2: How to ensure your product with good quality?
A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.
also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users
Q3: What's the warranty?
A3: 15 months warranty for free if confirmed by both side damage in the quality reason.
Q4: Whats your payment term?
A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.
Q5: Are you a manufacturer?
A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.
The control box design make the unit safety and stably.
