60TR Air Cooled Glycol Chiller | Industrial Process Cooling Unit

60TR Air Cooled Glycol Chiller | Industrial Process Cooling Unit

An air‑cooled glycol chiller is an industrial cooling system that uses an ethylene‑glycol and water mixture as circulating coolant instead of pure water. Unlike water‑only chillers, the glycol additive lowers the freezing point of the fluid, enabling stable sub‑zero or near‑freezing process cooling and preventing pipe and equipment freeze‑up during operation. Heat generated from the production process is absorbed by the glycol solution and rejected to the surrounding atmosphere directly through air‑cooled condenser fans, eliminating the need for cooling towers.

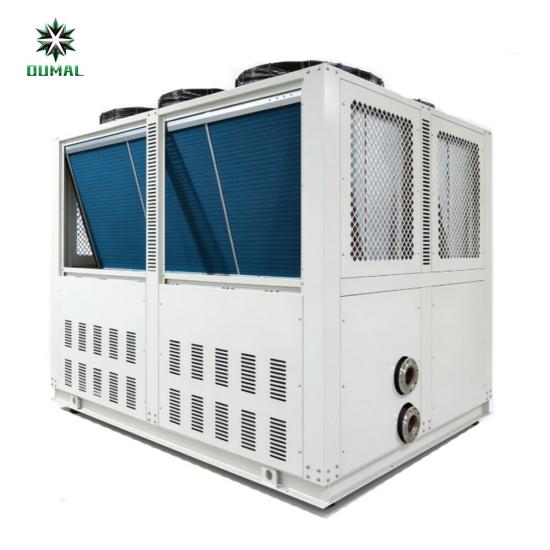

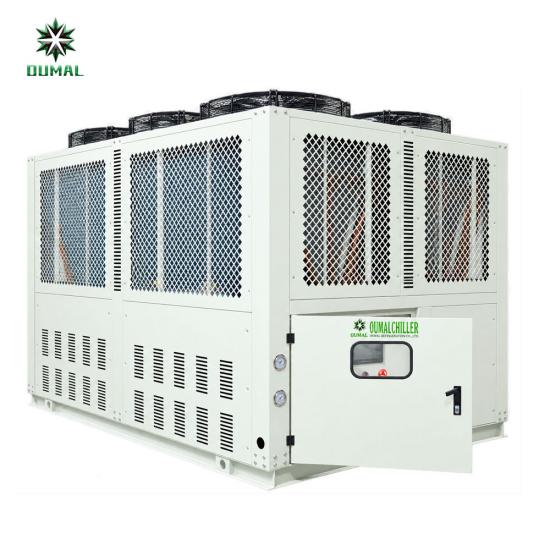

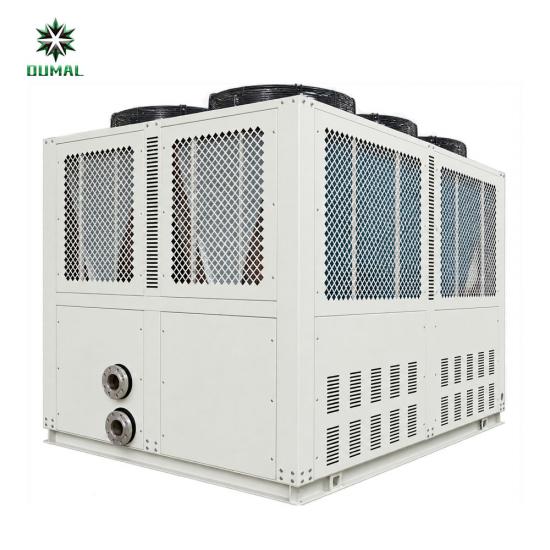

Our 60TR Air‑Cooled Glycol Chiller is a heavy‑duty industrial process cooling unit built for continuous‑duty ethylene glycol cooling applications. Delivering 60TR (210 kW) nominal cooling capacity, this glycol water chiller provides stable, accurate low‑temperature coolant circulation for factories and large‑scale industrial projects.

Engineered for both indoor and outdoor installation, the unit features reinforced condenser coils optimized for high‑ambient temperature conditions, making it well‑suited for hot‑climate markets including the Middle East, Africa and tropical regions. It works reliably with glycol‑water mixture to prevent freezing, supporting a wide range of process cooling requirements from plastic injection, food & beverage, pharmaceutical, chemical processing to special‑purpose project cooling.

Key Advantages of Air Cooled Glycol Chiller

- High‑efficiency compressor system with step‑load capacity control, reducing energy consumption under partial‑load working conditions
- Enhanced air‑cooled condenser, stable performance even under extreme high‑temperature ambient
- Integrated package design: built‑in glycol circulation pump, expansion tank and PID precision temperature controller, ready‑to‑connect on site
- Comprehensive safety interlocks: high / low pressure protection, phase‑loss & phase‑sequence protection, over‑current protection and anti‑freeze protection
- Robust industrial‑grade frame and cabinet, anti‑corrosion coating for long‑term outdoor operation
- Supports ethylene glycol solution cooling, maintains consistent supply temperature for critical production processes


OUMAL air‑cooled glycol chiller is equipped with Hanbell semi‑hermetic screw compressor, featuring 4‑step capacity control: 0‑25%‑50%‑75%‑100%. It automatically adjusts cooling capacity according to real‑time process load for better energy‑saving under part‑load conditions, suitable for long‑term continuous operation under low‑temperature glycol working conditions.

Adopting Siemens PLC control system with touch‑screen HMI, the unit provides real‑time monitoring of all operating parameters, auto‑fault diagnosis and full‑range safety protections. Multi‑language support and remote communication interface are available for easy supervision. The chiller supplies stable glycol solution from 0℃ down to ‑35℃, ideal for concrete cooling, ice rink, chemical reactor, food processing and other heavy‑duty industrial cooling projects.

Screw compressor Glycol water chiller Product Information

●：Temperature control -35℃ to 0℃

●：Shell and tube evaporator and condenser

●：Bizer or Hanbell semi-hermetic screw compressor

●：Optional refrigerant R134a,R407c and R404a

●：Schneider Electrical Components

●：PLC/ Touch Screen Control Panel

●：No water tank, connect an external water tank

●：Need to connect a cooling tower

●：Safety protection devices of whole screw chiller

●：All models and cooling capacity available

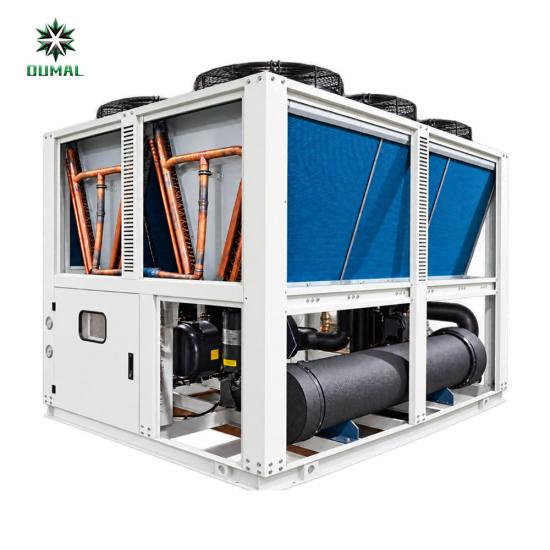

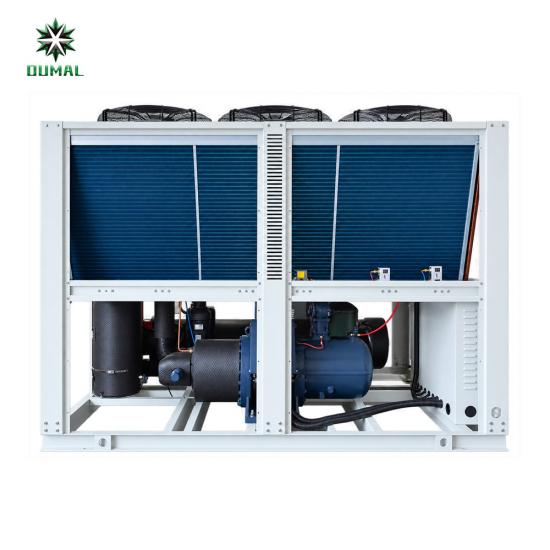

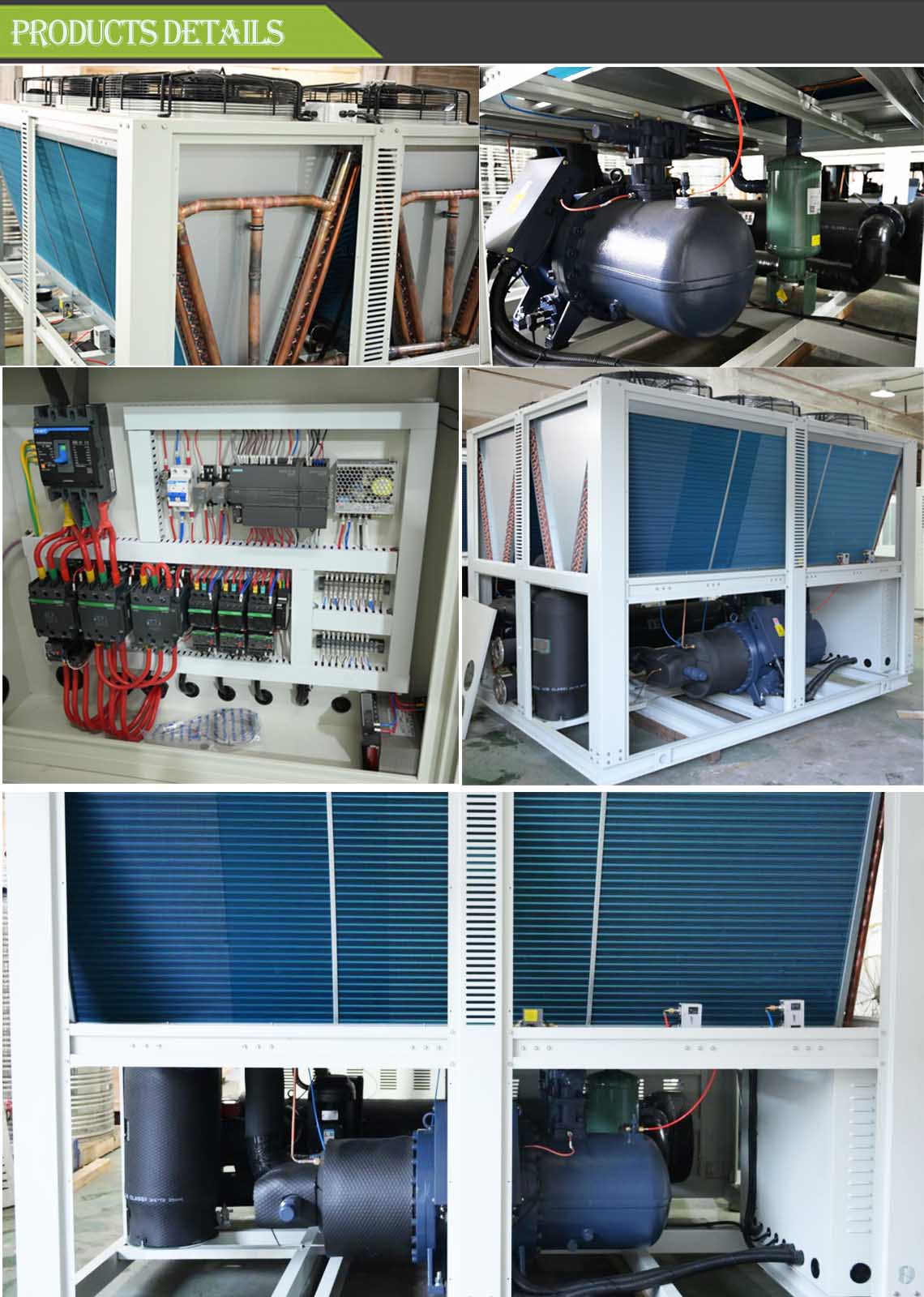

Screw type water chiller Product display

Compressor features:

•New screw type compressor with 20%-30% higher in efficiency.

•Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.

•High efficiency, low noise and vibration, easy to install.

•Environmental protection refrigerant R134a, R407c available.

Control operation system:

•SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.

•Extended industrial interface, convenient for being computer monitor via network.

Completely safety protection function:

•Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.

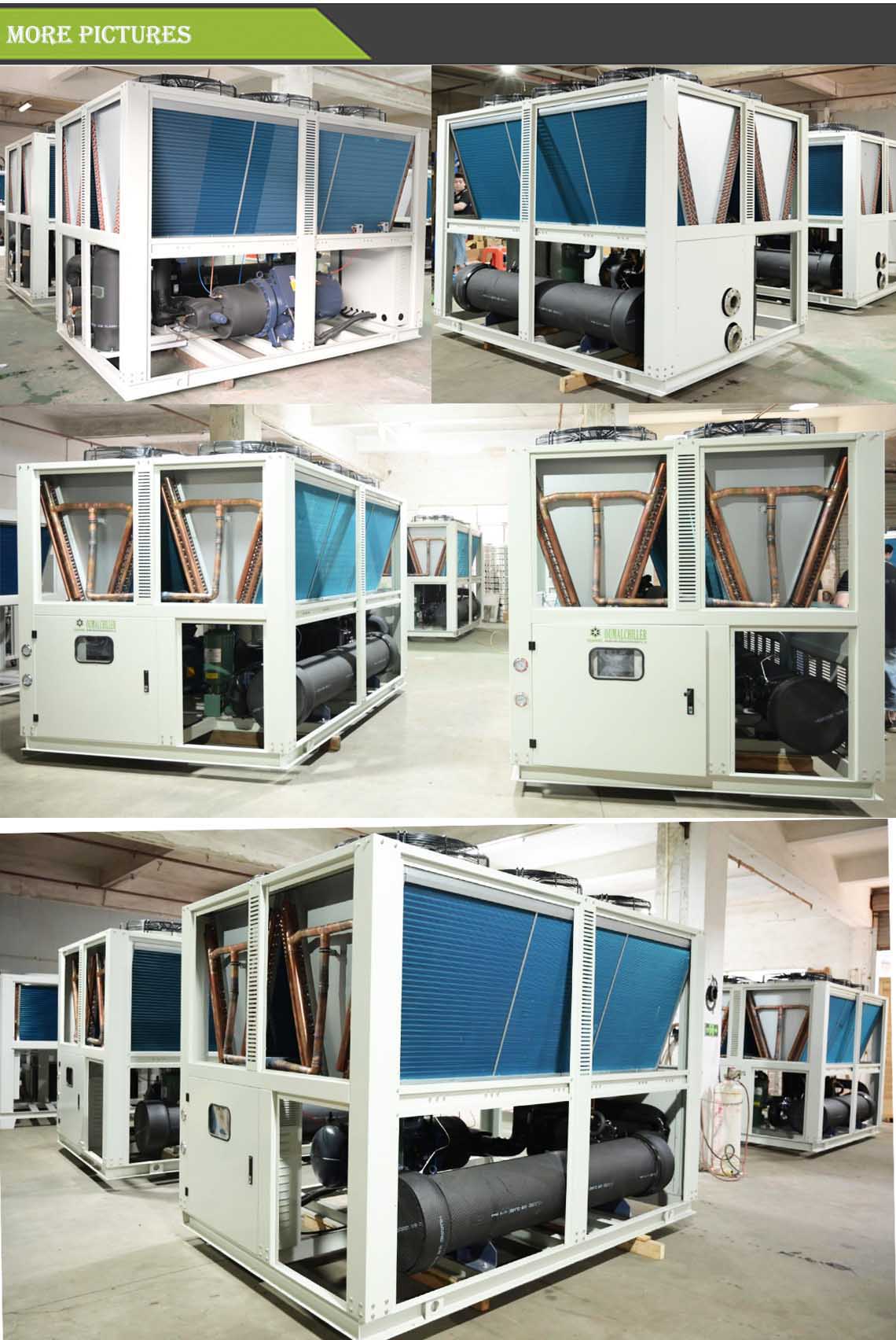

More Pictures of the 60Ton Industrial Glycol Chiller

Typical Applications of Glycol Chiller
Ethylene glycol chillers are primarily used in industrial settings requiring low-temperature cooling. They utilize an ethylene glycol-water solution as the heat transfer fluid, which remains liquid at temperatures below 0°C, thereby preventing freezing and equipment damage. Standard outlet temperatures range from -5°C to -25°C, with low-temperature models capable of reaching -45°C.

It used in Industrial process cooling, beverage production, food processing, pharmaceutical manufacturing, chemical cooling, injection & extrusion molding, large‑volume tank cooling and custom project‑based cooling systems.

Pharmaceutical and Chemical Industries: Meeting low-temperature requirements for production processes such as reactor cooling and material cooling; this is one of the most widespread application areas for ethylene glycol chillers.
New Energy Industry: Used for temperature control in chip manufacturing and new energy battery packs. Battery cooling involves two methods: direct cooling (where the cooling medium flows over the cell surface) and indirect cooling (where the medium flows through pipes and exchanges heat with the cells via a radiator). The goal is to maintain the battery at an optimal operating temperature, minimize temperature differences between cells, and delay aging.
Food and Beverage Processing: Used for process cooling, filling, and cold storage of products such as milk, beer, ice cream, and jelly; also commonly used for the pre-cooling of harvested fruits like frozen berries. Such projects typically require a return water temperature between -8°C and 0°C, with cooling loads exceeding 200 kW.
Data Centers and HVAC Systems: Utilizing ethylene glycol solution to exchange heat with cold outdoor air via dry coolers to enable "free cooling" modes. When the outdoor temperature is sufficiently low, this method can fully or partially replace mechanical refrigeration, significantly reducing data center energy consumption and improving PUE (Power Usage Effectiveness) metrics.

Product Specification

Packing & Shipping

Packing for LCL transportation Bulk carge

Packing & Loading Full container transportation

FAQ

Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?

Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users

Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.

Q4: Whats your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.

Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.

Q6: How can i Place an order ?

A6: Click Below to fill the table or Call 0086 15112554736
