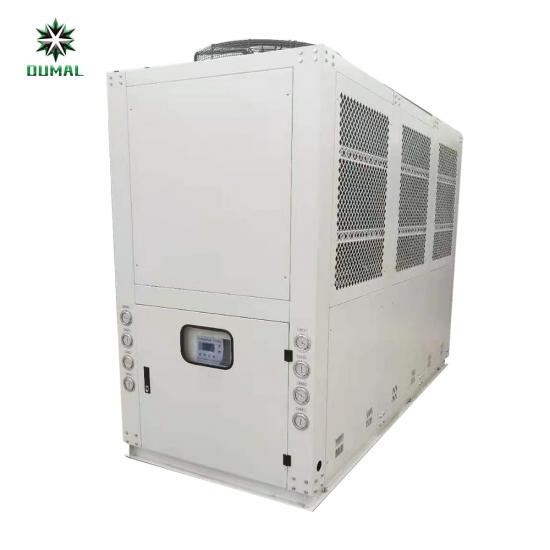

40HP 100KW outdoor chiller water proof air cooled scroll chiller

40HP 100KW packaged air cooled chiller for outdoor use or indoor use. Build in Copeland / Danfoss Scroll compressors with high quality and efficient. Easy installation & operation. Special size can be customized.
  • Item NO.:

    OMC-40A
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    10-15 Working days
  • Order(MOQ):

    1
  • Cooling Capacity:

    81kw
  • Chilled Water Flow:

    13.9 kw
  • Compressor type:

    Scroll type
  • Temperature Range:

    5-35 ºC
  • Power Supply:

    3PH-380V 50Hz
  • Refrigerant:

    R22(R407C/R410A/R134A)
  • Warranty:

    15 months
  • Product Detail

40HP 100KW outdoor chiller water proof air cooled scroll chiller

As a professional chiller supplier, Oumalchiller is committed to providing reliable chilled water solutions for industrial chilled water systems. We provide customized services to meet the different needs of different customers for chilled water systems.

The characteristics of outdoor waterproof air-cooled chillers mainly include the following points:

‌Easy to install‌: No complex cooling water piping system and cooling tower are required. Just install the power supply and water inlet and outlet to use, saving a lot of installation time and cost. This feature makes air-cooled chillers particularly suitable for projects with limited space or that need to be renovated‌.

‌Not limited by water resources‌: Air-cooled chillers do not require a large amount of water resources for cooling, so they are very suitable for areas with scarce water resources or poor water quality, ensuring the normal operation of the equipment‌.

‌Simple maintenance and low cost‌: The structure of the air-cooled chiller is relatively simple, without a complex cooling water system. Daily maintenance mainly includes cleaning the condenser, checking the electrical system and replacing the filter, etc. These tasks can be easily completed by the factory maintenance personnel, reducing maintenance costs and downtime‌.

‌Stable performance and high reliability‌: Using advanced refrigeration technology and high-quality components, it has the characteristics of stable performance and high reliability, and can operate normally under various harsh environmental conditions, such as high temperature, high humidity, and dusty environments‌.

‌Energy saving and environmental protection‌: Using efficient compressors and heat exchangers to improve energy utilization and reduce energy consumption. At the same time, there is no discharge of cooling water, which will not pollute the environment and meet the national environmental protection requirements.

‌Intelligent management‌: Modern air-cooled chillers are equipped with advanced control systems that can monitor the operating status of the equipment in real time and automatically adjust the operating parameters to achieve optimal performance. Through remote monitoring and fault diagnosis functions, users can find and solve problems in a timely manner, avoiding unnecessary losses caused by downtime and maintenance.

In summary, outdoor waterproof air-cooled chillers have become a popular choice in the field of industrial refrigeration with their advantages such as convenient installation, no water resource restrictions, simple maintenance, stable performance, energy saving and environmental protection. They are especially suitable for outdoor use and provide stable and reliable refrigeration services for various environments.

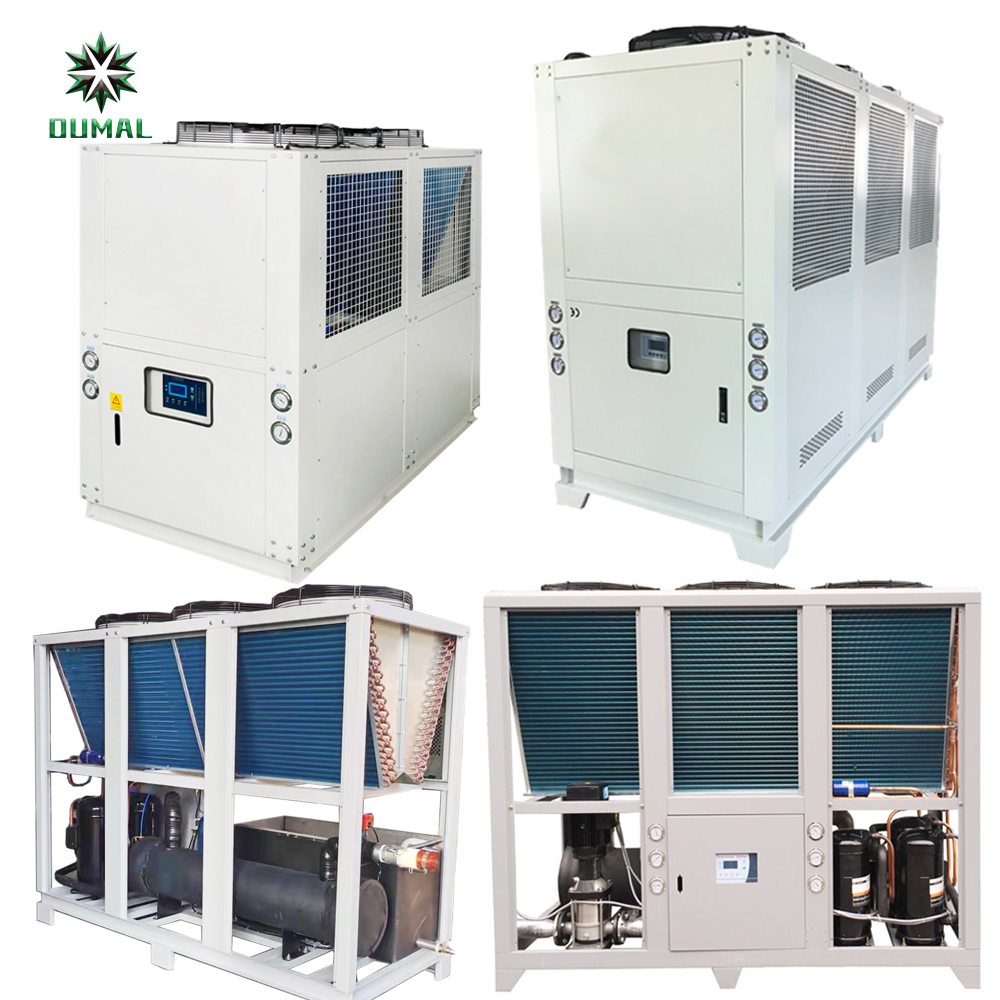

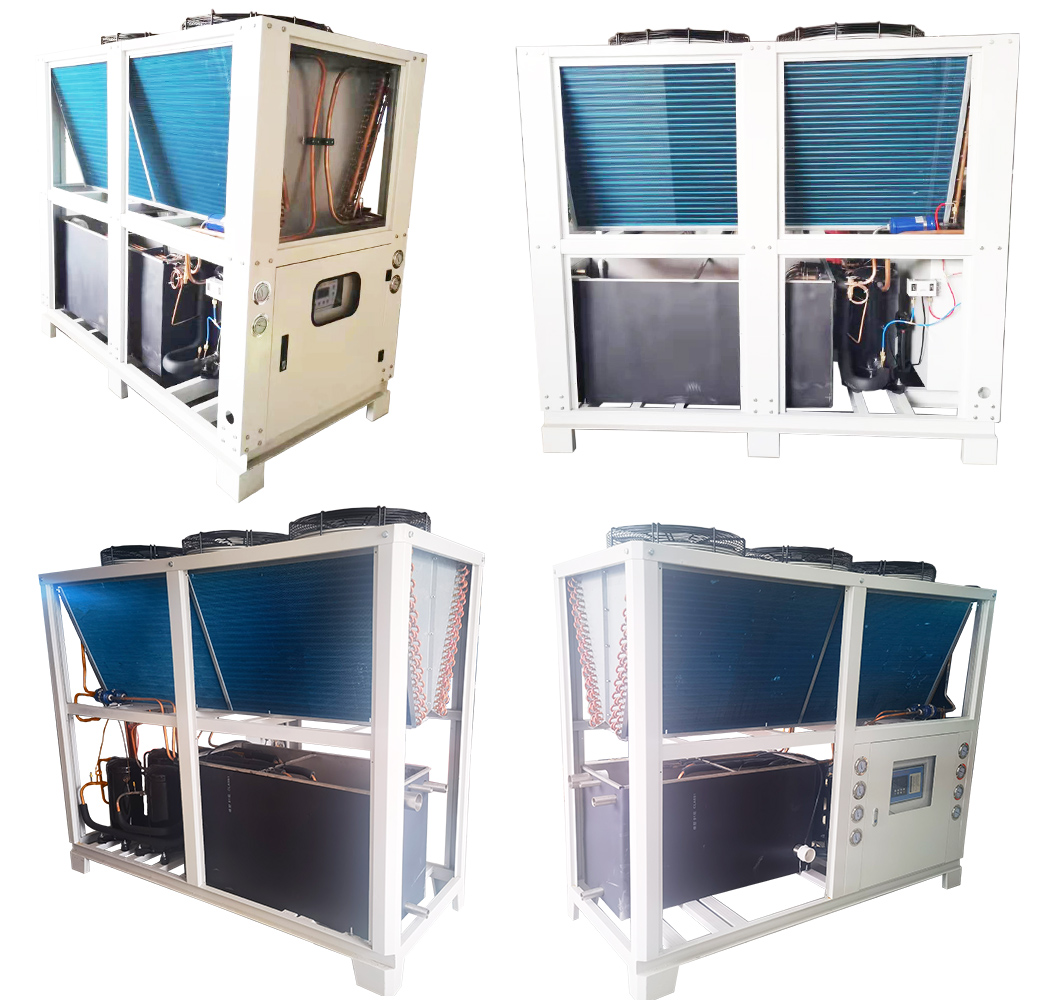

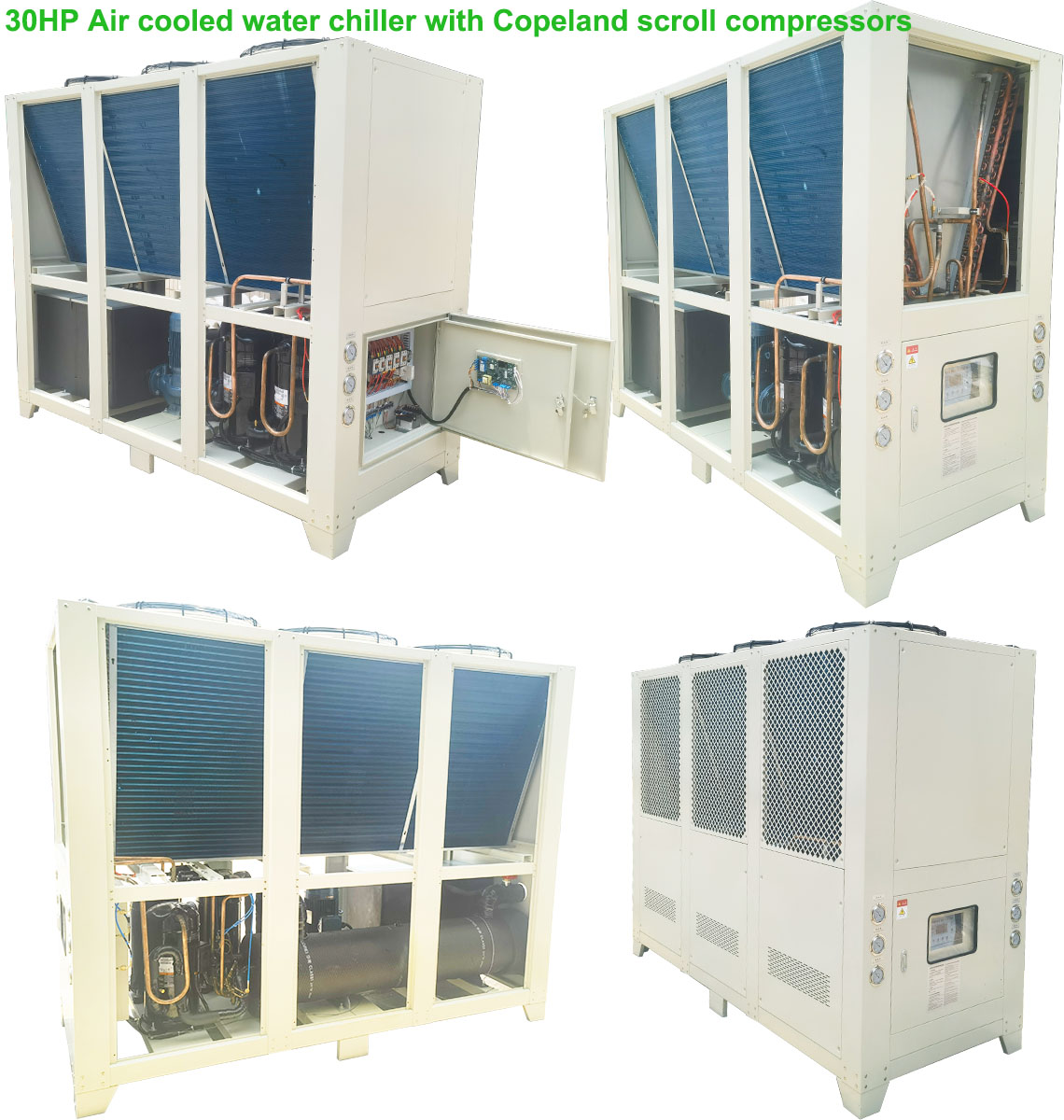

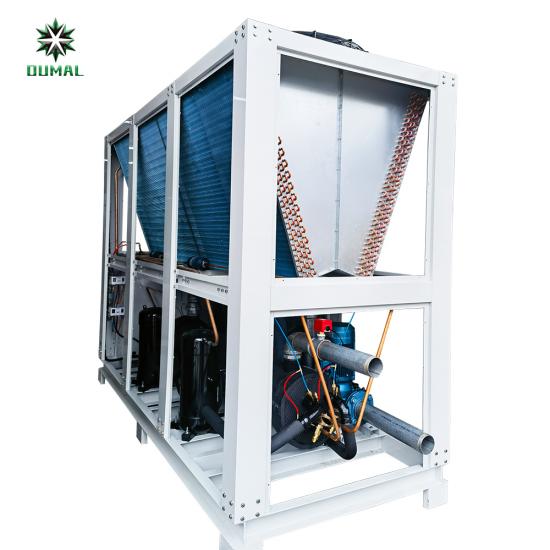

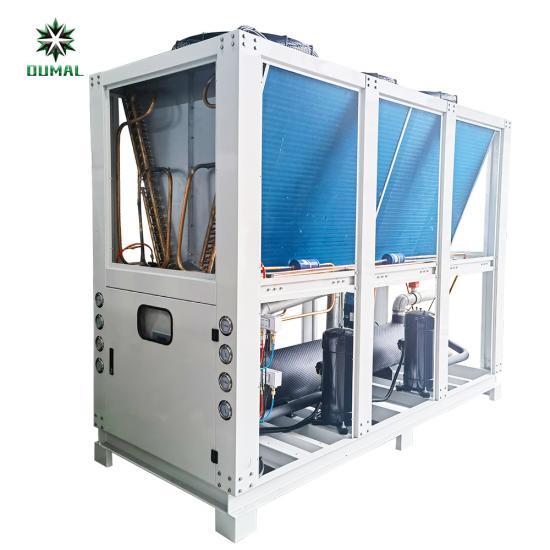

More Pictures of air cooled chillers

40 HP Outdoor use Air Cooled Chiller Products Specification

Products Specifications
                                       Model  OMC-1A OMC-2A OMC-3A OMC-5A OMC-8A OMC-10A OMC-15A OMC-20A OMC-25A OMC-30A OMC-40A
         Item
Cooling Capacity KW 2.7 5.4 8.1 13.5 21.6 27 40.5 54 67.5 81 108
Kcal/h 2322 4644 6966 11610 18576 23220 34830 46440 58050 69660 92880
Ton 0.8  1.5  2.3  3.8  6.1  7.7  11.5  15.4  19.2  23.0  30.7
Btu/h 9215  18430  27645  46075  73720  92150  138225  184300  230375  276451  368601
Input Power KW 1.4 2.1 2.8 5 7.3 9.2 14 18 22 28 36
Power supply 1PH-220V  50Hz 3PH-380V  50Hz
Temperature Range ºC 5-35
Refrigerant Type R22(R407C/R410A/R134A)
Compressor Control Mode Capillary Expansion Valve
Type Piston Type / Scroll Type
Power KW 0.75 1.5 2.2 4 6 7.5 11 15 18.5 22 30
Chilled water  Tank Volume L 25 30 60 65 150 180 300 400 400 540 630
Tank Material SUS304 Stainless Steel
Pipe Diameter inch 1月2日 3月4日 3月4日 1 2001/1/2 2001/1/2 2 2 2002/1/2 2002/1/2 3
Pump Lift 20 20 20 20 20 20 20 20 20 20 20
Power 0.37 0.37 0.37 0.75 1.1 1.5 1.5 2.2 2.2 4 4
Evaporator Type Tank with coil(Shell and Tube)
Chilled Water Flow m³/h 0.5  0.9  1.4  2.3  3.7  4.6  7.0  9.3  11.6  13.9  18.6
Condenser Type High efficiency copper condensing coil with Aluminum+Spiral axial flow fan
Cooling Air Flow m³/h 1000 2000 3000 5000 8000 10000 15000 20000 25000 30000 40000
Safety Protection Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, reversed and lacking phase protection, exhaust overheating protection.
Dimension Length mm 680 770 1000 1120 1250 1500 2080 2100 2100 2300 2430
Width mm 420 500 480 530 680 770 780 850 850 930 1185
Height mm 850 950 1100 1200 1350 1400 1650 1600 1700 1650 1710
Weight KG 73 95 128 172 300 350 750 850 950 1080 1360


Application of Air Cooled Chiller Scroll type

Air Cooled scroll Chiller is widely used in plastic industry: such as injection molding machines, extruding machines, Stretch film machines, bottle blowing machines; electroplate industry, Medical chillers, laboratory chillers, Electronics industry, textile industry.....

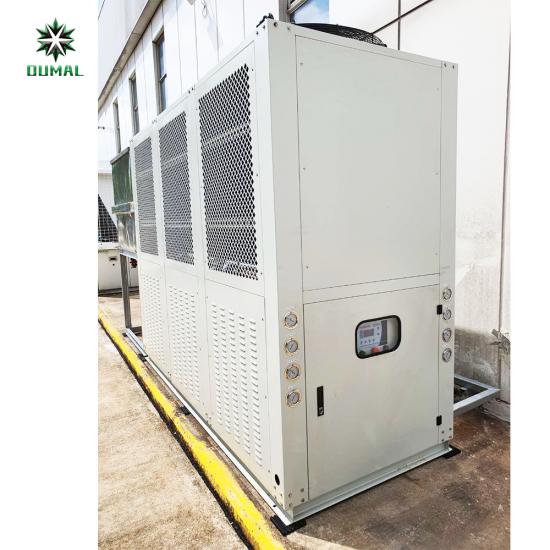

Air cooled chiller application



Packing & Shipping



FAQ

Q1:Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?



Q2:How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users



Q3:What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.



Q4:What’s your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.



Q5:Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance .

The control box design make the unit safety and stably.



Q6:How can i Place an order ?

A6: Click Below to fill the table or Call 0086 15112554736


Oumal is an experienced water chiller Supplier, We know the needs of users better. we can design the chiller according to customer's needs. If you are looking for industrial cooling system for your factory, Just send us the chilled water flow and temperature data, we will make the best solution for your reference.
