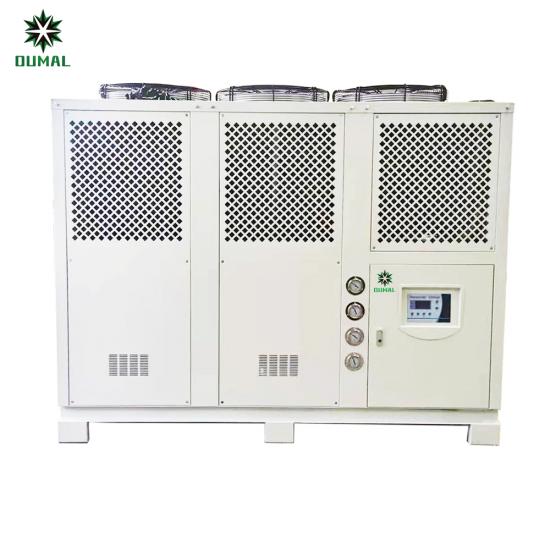

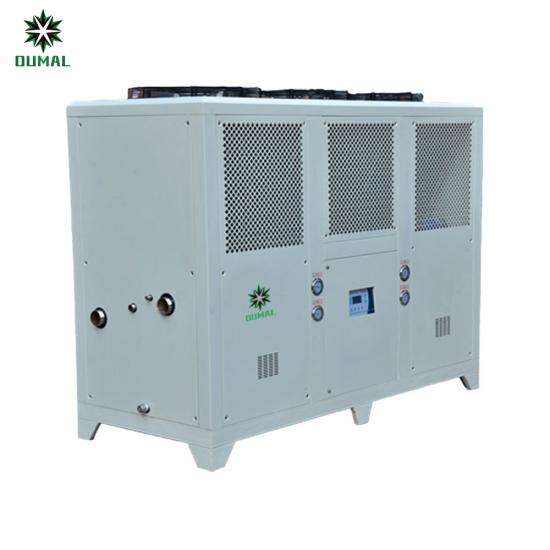

25HP/20 Tons Air Cooled Portable Water Chiller for PET Bottle Blowing Machines
This 25HP/20-ton air-cooled chiller boasts a powerful 68kW cooling capacity, making it an indispensable piece of equipment in industrial production, especially in blow molding. Utilizing advanced air-cooling technology, it ensures stable and efficient operation even in ambient temperatures below 35℃. This chiller rapidly reduces mold temperature, shortens product molding cycles, improves production efficiency, and extends equipment lifespan by minimizing downtime. Whether for mass production or customized manufacturing, this chiller provides an excellent cooling solution. The chiller voltage can be customized to customer needs, and the pump head and material can be configured to meet various requirements. The chiller control system features a microcomputer control panel for easy operation.

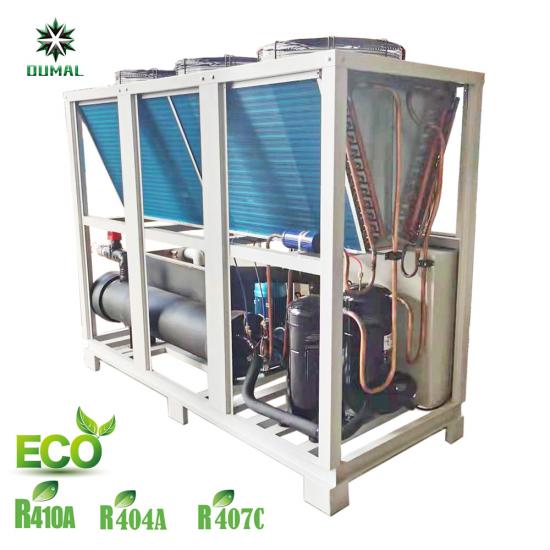

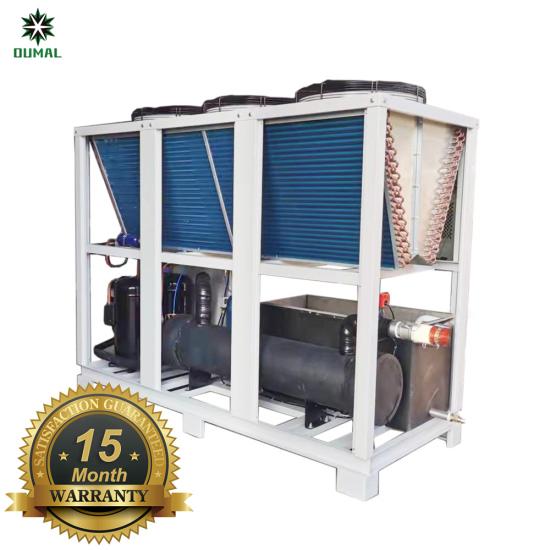

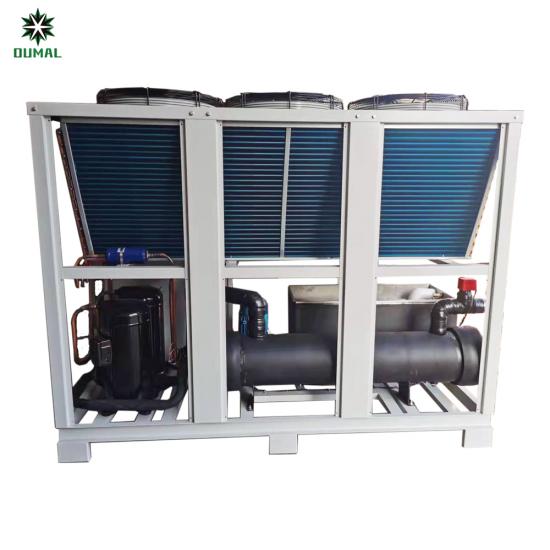

The core components of a 25HP air-cooled chiller are the compressor, condenser, evaporator, and control system. This particular 25HP air-cooled chiller uses two scroll compressors from well-known brands such as Panasonic, Copeland, or Danfoss. The condenser uses high-efficiency aluminum fins with internally threaded copper tubes for excellent heat exchange, while the evaporator is a shell-and-tube type, ensuring stable operation. The control system uses a microcomputer board or PLC for intelligent temperature control and is easy to operate.
If you are looking for the water chiller for pet bottle blowing machine or blowing molding machine. Contact us to get the latest chiller price . We will offer you the best solution. We provide customized chiller and meet your the requirements of the cooling water systems.
Air-Cooled Industrial Chiller Products Information
●：Air Cooled Chiller Scroll chiller cooling capacity 1 Ton to 40 Ton
●：Temperature control 5℃ to 35℃
●：Temperature stability ±0.5℃ to ±2℃
●：Large Copper Condensing Coil with Aluminum Fins
●：Built-in SS water tank and water pump
●：Shell & tube or SS Plate Heat Exchanger for optional
●：Schneider Electrical components & Mic-computer control panel
●：Air cooled chiller is Easy installation and energy saving
●：All models and cooling capacity are available

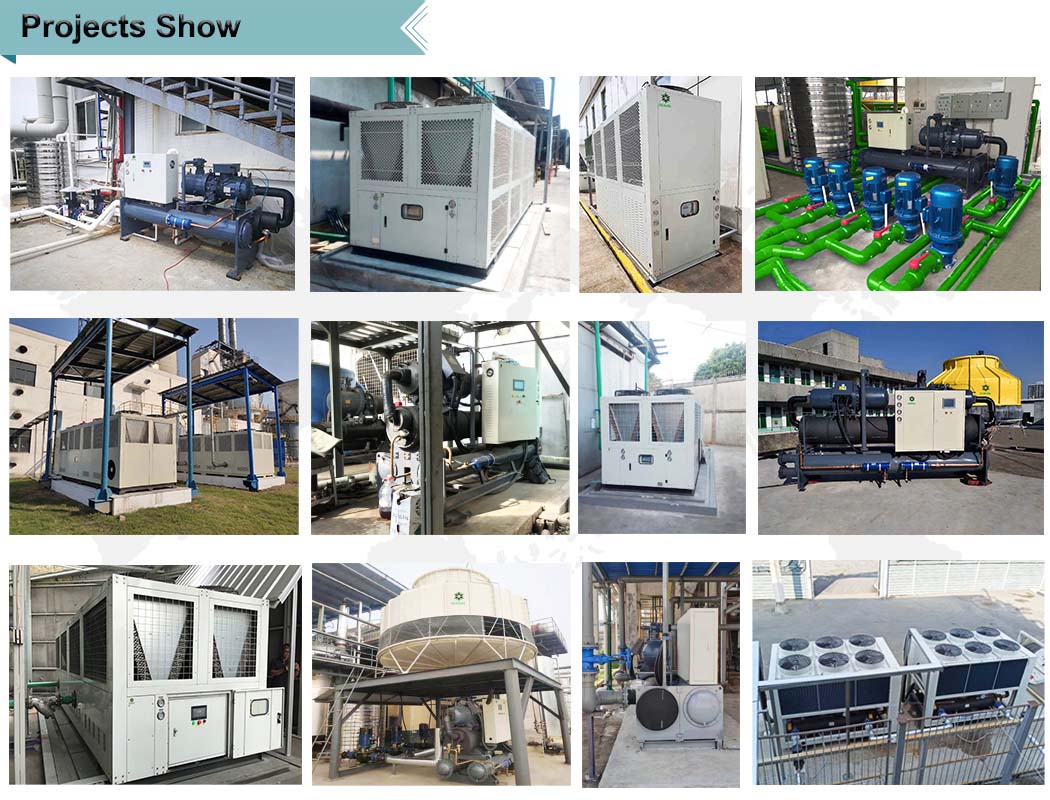

Application of 20 Ton Air-Cooled Chiller
The 20 Tons Air cooled chiller for pet bottle blowing machine is also used in many industries. As Air Cooled Type Chiller No Need to Use Cooling Tower, It's easy installation and moving, Scroll type chiller air cooled industrial chiller is widely used in plastic industry: such as injection molding machines, extruding machines, Stretch film machines, bottle blowing machines; electroplate industry, Medical chillers, laboratory chillers, Electronics industry, textile industry.....
20 Ton Air chiller Products Specification
|
Model Item |
OMC-25A |
||
|
Cooling Capacity |
KW |
67.5 |
|
|
Kcal/h |
58050 |
||
|
Ton |
19.2 |
||
|
Btu/h |
230375 |
||
|
Input Power |
KW |
22 |
|
|
Power supply |
3PH-380V-50Hz/3ph-440V-60Hz/3ph-220V-60Hz/3ph-480V-60Hz/ 3ph-575V-60Hz/ 3ph-380V-60Hz |
||
|
Temperature Range |
℃ |
5-35 |
|
|
Refrigerant |
Type |
|
R22（R407C/R410A/R134A） |
|
Compressor |
Control Mode |
|
Expansion Valve |
|
Type |
|
Piston Type / Scroll Type |
|
|
Power |
KW |
18.5 |
|
|
Chilled water |
Tank Volume |
L |
400/150 |
|
Tank Material |
|
SUS304 Stainless Steel |
|
|
Pipe Diameter |
Inch |
2-1/2〃 |
|
|
Pump |
Lift |
m |
20 |
|
Power |
kw |
2.2 |
|
|
Evaporator |
Type |
|
Tank with coil（Shell and Tube） |
|
Chilled Water Flow |
m³/h |
11.6 |
|
|
Condenser |
Type |
|
High efficiency copper condensing coil with Aluminum+Spiral axial flow fan |
|
Cooling Water Flow |
m³/h |
25000 |
|
|
Dimension |
Length |
mm |
2100 |
|
Width |
mm |
850 |
|
|
Height |
mm |
1700 |
|
|
Weight |
KG |
950 |
|
|
Safety Protection: Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, reversed and lacking phase protection, exhaust overheating protection. |
|||
Scroll Type chiller Packing & Shipping
FAQ
Q1:Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:
1)Cooling capacity;
2)chilled water inlet and outlet temperature
3)chilled water flow
4) Refrigerant;
5) Ambient temperature;
6)Voltage;
7) Be used for what industry?
8)Any other special requirements?
Q2:How to ensure your product with good quality?
A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.
also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users
Q3:What's the warranty?
A3: 15 months warranty for free if confirmed by both side damage in the quality reason.
Q4:What’s your payment term?
A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.
Q5:Are you a manufacturer?
A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance .
The control box design make the unit safety and stably.
Q6:How can i Place an order ?
A: Click Below to fill the table or Call 0086 15112554736
