15 Ton Packaged Industrial water chillers

15 Ton Packaged Industrial water chillers OMC-20W. Refrigeration cycle: 4 or 2 or 1 optional. Water cooled chiller capacity range: 2 Ton to 50 Ton.
  • Item NO.:

    OMC-20W
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    7-10 Working days
  • Order(MOQ):

    1
  • Product weight:

    1
  • Product Detail

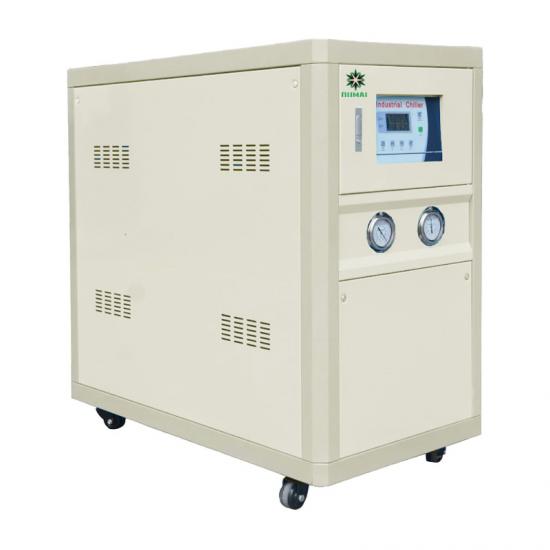

15 Ton Packaged Industrial water chillers


15 Ton scroll type packaged water cooled chiller build with 1 or 2 or 4 refrigeration cycles. We use hemetic scroll type compressor Copeland brand or Daikin Brand or Danfoss Brand. Water cooled chiller must work together with water cooling tower and cooling pumps. 15 Ton Water-cooled chillers are composed of compressors, condensers, evaporators, expansion valves, circulating water pumps, electrical control systems, and racks. The main difference between air-cooled chillers and air-cooled chillers is that the condenser has a different form. Water chillers generally use shell and tube heat exchangers.


Water cooled chiller designed and manufactured by OUMAL consists of scroll compressor, water-cooled shell and tube type condenser, shell and tube condenser or stainless steel water tank coil or stainless steel plate heat exchanger as the evaporator and water pump. There are different types of evaporators for closed loop or open loop requirements depending on the needs of water chiller end users and different water chiller applications.



Water-cooled chillers are widely used in various industries due to their low impact on ambient temperature, low unit cost and high cooling energy efficiency. It should be noted that water-cooled chillers need to use cooling towers and pumps to provide cooling water source. Of course, it would be better if there is already a cooling water system.



    From the working principle of the water-cooled chiller, we can see that the water-cooled chiller is composed of an electric control system, a refrigeration system, a cooling water circulation system, and a chilled water circulation system. The refrigerant (refrigerant) is compressed in the compressor to form a gas-liquid mixture, and the heat is transferred to the cooling water after being condensed in the condenser. The refrigerant absorbs heat in the evaporator under the control of the throttling device and gradually vaporizes. Then it is sucked into the compressor to enter the next cycle.



 Since the cooling water temperature is less affected by the ambient temperature, the cooling efficiency of the water-cooled chiller is relatively stable. Even when the ambient temperature rises in the summer (autumn) season, the attenuation of its cooling capacity is much smaller than that of the air-cooled chiller. Another advantage of the water-cooled chiller is that since it does not use a condensing fan, it can be installed in some places with higher requirements for noise or indoor places without exhaust facilities.



    Water-cooled chillers are often used in occasions that require large cooling capacity due to their low cost and high energy efficiency ratio, such as air-conditioning refrigeration, temperature control of chemical reactors, and centralized refrigeration in factories.



Packaged water cooled chiller Quick Details


●:water cooled chiller Cooling capacity range: 2Ton to 50Ton

●:Temperature control 5℃ to 35℃

●:Water cooled condenser type: shell and tube

●:Build in stainless steel water tank and water pump

●:Scroll or piston compressor available

●:Schneider electrical components

●:Mic-computer control panel

●:Full protection devices of the water chiller unit

●:All water chiller models and capacities available

water cooled chiller refrigeration cycle


Water cooled scroll chiller application


Oumal chiller is the chiller manufacturer specialized in water cooled industrial chiller in China. The researched and developed water-cooled chiller is energy-saving and environmentally friendly, with high refrigeration efficiency, and is applied in many fields of industry, such as injection molding machine centralized cooling, powder equipment industry, waste gas and wastewater treatment industry, chemical industry, food processing industry, beverage processing industry, etc., factory-type enterprises, many will involve cooling technology, but also cooling production equipment, water-cooled chillers are more efficient.


15 Ton water cooled chiller Specification


    Model                  Item

OMC-20W

Cooling Capacity

KW

60

Kcal/h

51600

Ton

17.0

Btu/h

204778

Input power

KW

17.2

Power supply

3 PH-380V  50Hz

Temperature Range

5-35

Refrigerant

Type

R22(R407C/R410A/R134A)

Compressor

Control Mode

Expansion Valve

Type

Scroll type / Piston Type

Power

KW

15

Chilled water

Tank Volume

L

400

Tank Material

SUS304 Stainless Steel

Pipe Diameter

Inch

2"

Pump

Lift

m

20

Power

kw

2.2

Evaporator

Type

Tank with coil(Shell and tube)

Chilled water flow

m³/h

10.3

Condenser

Type

Shell and tube

Cooling water flow

m³/h

13.3

Dimension

Length

mm

1600

Width

mm

850

Height

mm

1460

Weight

KG

820

Safety Protection:Compressor overheating protection, over-current protection, high and low pressure protection, over-temperature protection, flow protection, reversed and lacking phase protection, exhaust overheating protection.


Package and Delivery




FAQ



Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements



Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users



Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.



Q4: What’s your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.



Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance .

The control box design make the unit safety and stably.



Q6: How can i Place an order ?

A6: Click Below to fill the table or Call 0086 15112554736


Want to know about this product?

SEND A MESSAGE
Something isn’t Clear?

Feel free to contact me, and I will be more than happy to answer all of your questions.

Related Products
water cooled condenser chiller
Box type small industrial chiller water cooled condenser
5HP Box type small industrial chiller water cooled condenser OMC-5W. Packaged water cooled chiller build in water cooled condenser shell and tuebe type. Temperature range: 5℃ to 35℃.
Stainless steel heat exchanger chiller
Stainless Steel Heat Exchanger industrial water chiller
15HP Stainless Steel Heat Exchanger industrial water chiller OMC-15W. Building in Semi-hermetic piston compressor 316 Stainless steel Shell and tube condenser and evaporator.

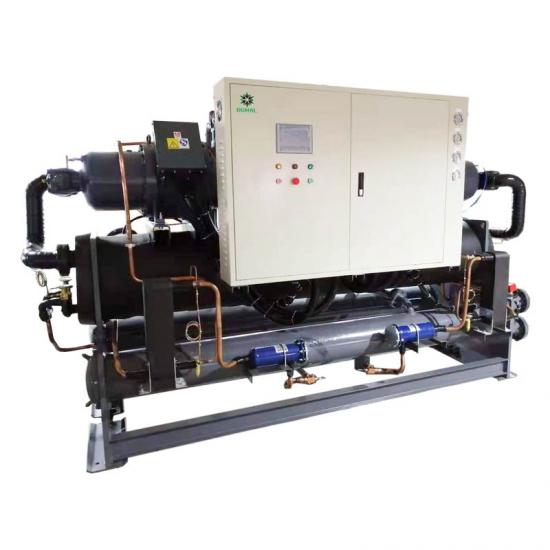

100 ton industrial water chiller
