100 Ton screw type compressor water cooled chiller

100 Ton screw type compressor water cooled chiller  OMC-100WSH, Hanbell screw compressor, high efficient, Double compressors optional.
  • Item NO.:

    OMC-100WSH
  • Payment:

    T/T, L/C, WEST UNION
  • Product Origin:

    CHINA
  • Color:

    CUSTOMIZE
  • Shipping Port:

    SHENZHEN
  • Lead Time:

    20-30 Working days
  • Order(MOQ):

    1
  • Product Detail

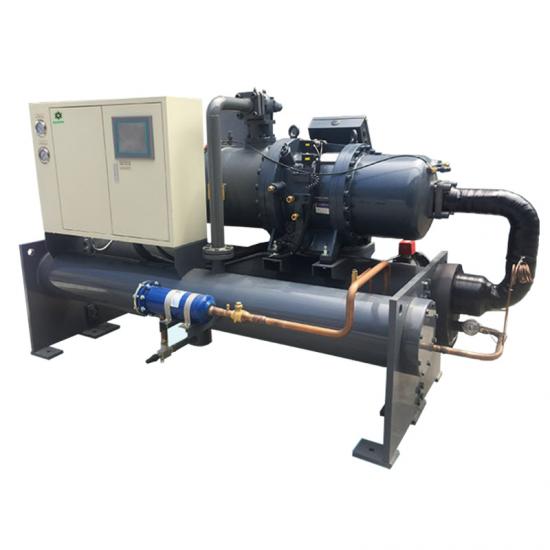

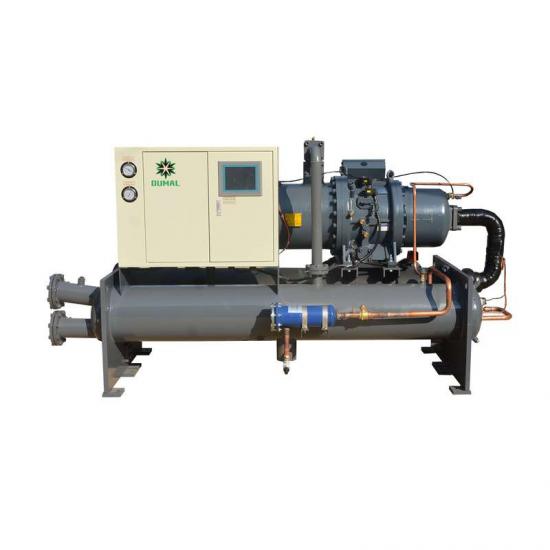

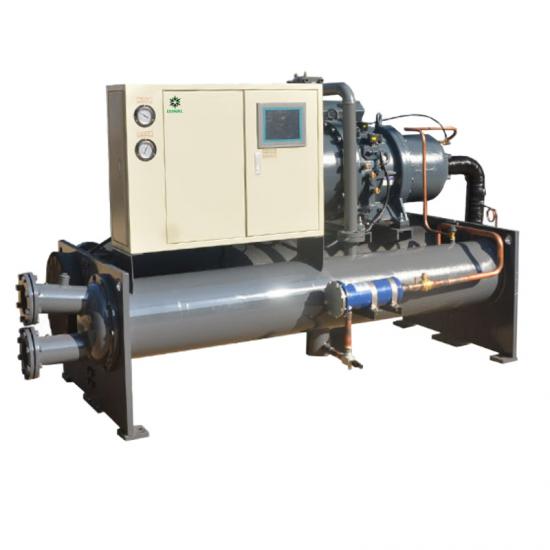

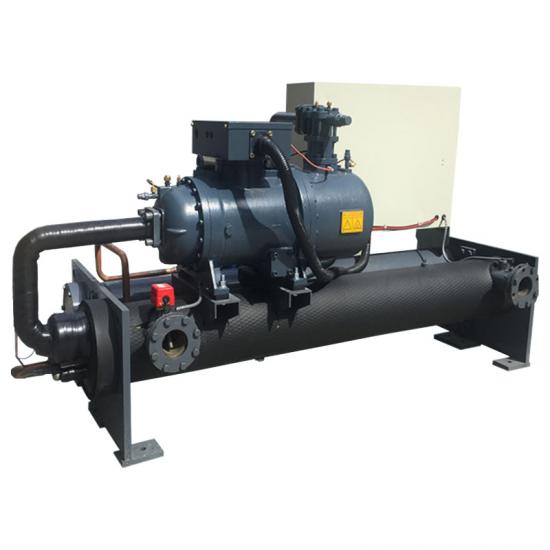

100 Ton screw type compressor water cooled chiller


Oumal 100 Tons screw compressor water cooled chiller can use single compressor or double compressors. Compressor use Hanbell Brand from Taiwan, Bitzer compressor from Germany optional.


The screw chiller is called the screw compressor. It is mainly composed of screw refrigeration compressors, condensers, evaporators, electronic control components, instruments, etc. Because of its compact structure, small size, and easy It has the advantages of less damaged parts, simple and convenient use and maintenance, stable operation and high reliability. At present, it is widely used in large-scale industrial refrigeration and central air-conditioning systems.

In the screw chiller, according to the screw refrigeration compressor used, it can be divided into single screw compressor and twin screw compressor. According to the connection mode of the motor and screw, it can be divided into open type and closed type. The placement position can be divided into horizontal and vertical.

The working principle of the screw chiller is: when the unit starts to work, the compressor sucks the low-temperature and low-pressure refrigerant in the evaporator into the cylinder. After the compressor works, the refrigerant vapor is compressed into high-temperature and high-pressure gas, which enters the condenser through the exhaust pipe Inside. The high-temperature and high-pressure refrigerant gas exchanges heat with the cooling water in the condenser, and transfers the heat to the cooling water, while the refrigerant gas is condensed into a high-pressure liquid. The high-pressure liquid from the condenser enters the evaporator after being throttled and pressure-reduced by the thermal expansion valve. In the evaporator, the low-pressure liquid refrigerant absorbs the heat of the chilled water and vaporizes, so that the chilled water is cooled down and becomes the required low-temperature water. The vaporized refrigerant gas is sucked in by the compressor again for compression, and discharged into the condenser, so that it goes round and round, and circulates continuously, so as to realize the cooling of the chilled water.

Water-Cooled Screw Chiller Product Information


  • Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
  • Chilled water temperature range 5℃ to 35℃.
  • R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
  • Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
  • Microcomputer control system offering accurate temperature stability within ±1℃.
  • Low noise and big volume air blower.
  • Standard equipped Iron pump, stainless steel or high lift pump for option.
  • Multi-protection devices ensure the chiller unit running safely.
  • The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
  • OUMAL water cooled industrial chiller opted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in High ambient temperature area with abundant water.
  • OUMAL air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.
  • Power supply: 3PH 380V/575V /50HZ-----3PH 220V/440V/60 Hz optional



Oumal Screw compressor chiller advantage


1. We have the complete products lineup from 30ton to 850ton cooling capacity, can meet your wide operating map for both industrial plant cooling and commercial comfort cooling applications.



2. Our water-cooled screw chillers are designed with one or two refrigerant circuits based on your heat load capacity. Two refrigerant circuits design will improve part-load efficiency to save your electricity consumption.



3. Using a top brand semi-hermetic screw compressor, this single main rotor compressor means inherently quieter operation than dual rotor compressors.



4. The condenser using in water-cooled screw chiller with Perfect forced cooling design, enlarge the cooling capacity, improve refrigerating efficiency. High-efficiency warping tube, enlarge heat exchange area, enhance refrigerant disturbed flow of tube, improving heat exchange rate.



5. Dry Type shell and tube evaporator, with a low quantity of refrigerant sealed, has a good performance of oil return, dispensing with the external oil pump or oil return filter. It has no easy damaged parts and has low costs of maintenance. Anymore the outlet and inlet of the refrigerant appear asymmetric in distribution. By utilizing the refrigerant, it increases the efficiency of heat transfer.



6. Our water-cooled screw chillers connected with solid-state starters are standard to provide controlled acceleration and deceleration with less compressor stress and vibration.



7. All water-cooled screw chillers are charged with environment-friendly refrigerant R407c, R-134a, or R410a has no ozone depletion potential and no phase-out schedule.



8. Each water cooled screw chiller equipped with an advanced microcomputer control system. This clear user-friendly LCD touch Console features. 7-inch LCD touch console, visual, simple, intuitive.

The display makes it easy to view the current operating status and simplify the setting procedure. Various parameters can be confirmed at a glance. Regardless of operating status, the console allows you to set a variety of operation modes. A warning log function makes it possible to recall the latest 10 recent warning events.



9. Our water-cooled screw chiller has complete protections including: safety valve, over-high exhaust temperature protection, screw compressor motor temperature protection, high pressure/low-pressure protection, three-section over current protection, oil heater anti-freezing protection.



10. Water-cooled screw chiller with compact size fits through a 3-foot door will lower the owner’s installation costs.



Water-cooled screw chillers can be widely used in plastic, electroplating, electronics, chemical, pharmaceutical, printing, food processing, and other industrial refrigeration processes, or in large shopping malls, hotels, factories, hospitals, and other central air conditioning projects where chilled water is used for centralized cooling.



If you are looking for good quality water cooled screw chiller supplier? Please contact us to get an instant price.


Industrial screw chiller Application


Oumal series screw compressor water chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military,

200 Ton water cooled screw products Specification


  Item                        Model

OMC-100WSH

Cooling Capacity

kcal/h

321554

KW

373.9

Ton

106.3

Btu/h

1276109

Input Power

KW

73.1

Max.running Current

A

194

Power supply


3PH-380V/415V 50HZ(220V/440V  60HZ))

Refrigerant

Type


R22/R4007C

Charge quantity

kg

70

Control Mode


Expansion Valve

Compressor

Type


Semi-Hermetic Screw

Power

KW

73.1

Start-up Mode


Y-△

Capacity Control

0-25-50-75-100(0-33-66-100)

Evaporator

Type


Shell and Tube

Chilled water flow

m3/h

64.3

Pipe Diameter

lnch

4"

Condenser

Type


Shell and Tube

Cooling water flow

m3/h

76.9

Pipe Diameter

lnch4

Dimension

Length

mm

2750

Width

mm

1050

Height

mm

1600

Net Weight

kg

1720

Running Weight

kg

1960

Safety Protection: Compressor over temperature protection, over load protection, high and low pressure protection, anti-freezing protection, reversed and lacking phase protection, fusible blug, flow switch



FAQ


Q1: Could you help us to recommend the model for our project?

A1: Yes, we have engineer to check the details and make the scheme for you. Based on the following:

1)Cooling capacity;

2)chilled water inlet and outlet temperature

3)chilled water flow

4) Refrigerant;

5) Ambient temperature;

6)Voltage;

7) Be used for what industry?

8)Any other special requirements?


Q2: How to ensure your product with good quality?

A2: All our products with CE certificate. And use the well-know brand accessories, such as copeland, danfoss,Hanbell, Bitzer compressor Emerson expansion Valve, Siemens controller.

also can be customized. All OUMAL Chillers are factory tested under load conditions to ensure good quality and easy installation for users


Q3: What's the warranty?

A3: 15 months warranty for free if confirmed by both side damage in the quality reason.


Q4: What's your payment term?

A4: We accept T/T, LC, Western Union, etc. Normally, 30% deposit for production, 70% balance before shipment.


Q5: Are you a manufacturer?

A5: Yes, we have more than 15 years in water chiller business. Also have patent on the water chiller appearance.

The control box design make the unit safety and stably.


Q6: How can i Place an order

A6: Click Below to fill the table or Call 0086 15112554736
